ZKL, Σελίδα 95

D = 120 mm,

S = 16 mm,

d = M90 x 2 mm

D = 110 mm,

S = 16 mm,

d = M85 x 2 mm

D = 105 mm,

S = 15 mm,

d = M80 x 2 mm

D = 98 mm,

S = 13 mm,

d = M75 x 2 mm

D = 92 mm,

S = 12 mm,

d = M70 x 2 mm

D = 85 mm,

S = 12 mm,

d = M65 x 2 mm

D = 18 mm,

S = 4 mm,

d = M10 x 0.75 mm

d = M100x2 mm,

D = 130 mm,

L = 71 mm,

b = 90 mm

d = M90x2 mm,
D = 120 mm,
L = 65 mm,
b = 80 mm

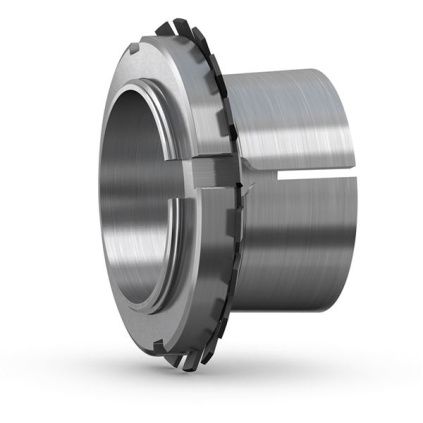

The SKF H 318 adapter sleeve is designed to facilitate the mounting of tapered bore bearings onto cylindrical shafts. It ensures a secure fit without the need for modifications to either the bearing or the shaft.

d = M80x2 mm,

D = 105 mm,

L = 59 mm,

b = 70 mm

d = M130x2 mm,

D = 165 mm,

L = 92 mm,

b = 115 mm

d = M60x2 mm,

D = 80 mm,

L = 47 mm,

b = 55 mm

d = M55x2 mm,

D = 75 mm,

L = 45 mm,

b = 50 mm

d = M40x1.5 mm,

D = 58 mm,

L = 36 mm,

b = 35 mm

d = M35x1.5 mm,

D = 52 mm,

L = 35 mm,

b = 30 mm

d = M30x1.5 mm,

D = 45 mm,

L = 31 mm,

b = 25 mm

d = M25x1.5 mm,

D = 38 mm,

L = 29 mm,

b = 20 mm

d = M160x3 mm,
D = 190 mm,
L = 93 mm,
b = 140 mm

The SKF H 3032 adapter sleeve is designed for mounting bearings with a tapered bore onto cylindrical shafts. It includes a KM lock nut and an MB lock washer, ensuring secure and reliable installation.
