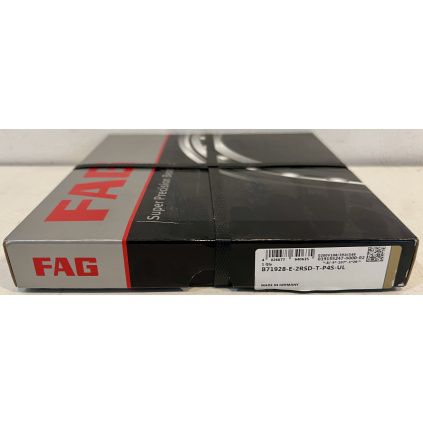

Ρουλεμάν - B71928-E-2RSD-T-P4S-UL FAG
B71928-E-2RSD-T-P4S-UL FAG is a single-row angular contact ball bearing and spindle bearing with standardized dimensions. It has non-contact 2RSD seals on both sides, a hard-fiber TB cage, P4S precision, a 25° contact angle, universal pairing G and light universal preload UL.
Dimensions: inner diameter d 140 mm, outer diameter D 190 mm, width B 24 mm; weight 1.68 kg. The bearing combines high load capacity and rigidity and is suitable for medium speeds and machine-tool main spindles. Tandem arrangements support axial loads in one direction; O or X arrangements support axial loads in both directions and moments.
71936 ACD/P4ADBC SKF
ρουλεμάν γωνιακής επαφής υπερακρίβειας
180 × 250 × 66 mm
ACD · P4A · DB

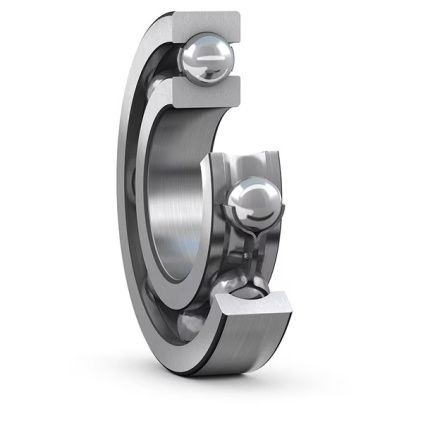

6322 C3 SKF
μονής σειράς ρουλεμάν βαθιάς αυλάκωσης
110 × 240 × 50 mm
C3
Metal shields on both sides
Greater radial internal clearance
Greater radial internal clearance
Greater radial internal clearance
Metal shields on both sides
Greater radial internal clearance
Metal shields on both sides
Greater radial internal clearance
Rubber seals on both sides
Greater radial internal clearance
