Single-row angular-contact ball bearing, high precision, B7024-E-T-P4S-UL FAG. Dimensions 120 × 180 × 28 mm, no seal, TB hard-fiber/textolite cage, P4S precision (better than P4), 25° contact angle, G universal pairing and UL light preload. EAN 4012801453028. Weight: 2.06 kg (ABF) and 2.264 kg (Albeco). Dynamic load rating 109000 N, static load rating 78000 N, limiting speed 6700 rpm with grease and 10000 rpm with oil.

3317-M FAG
Двуредов сачмен лагер с ъглов контакт FAG
85 × 180 × 73 mm
8.46 kg
Solid brass cage

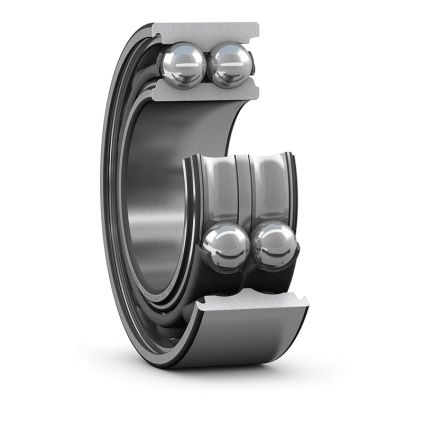

Double-row angular-contact ball bearing 3317-A SKF. Dimensions 85 × 180 × 73 mm, steel cage, normal clearance and EAN 7316570649987. Weight: 8.42 kg (ABF) and 7.7 kg (Albeco). Albeco reports 30° contact angle, dynamic load rating 208000 N, static load rating 176000 N, limiting speed 3600 rpm and reference speed 4000 rpm.

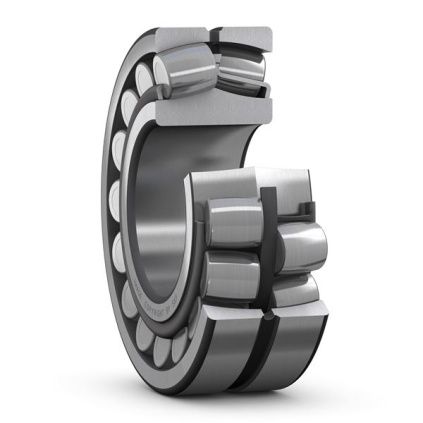

Търкалящ лагер - 23122M/C3 SKF

23122M/C3 SKF is an open spherical roller bearing with two rows of symmetrical rollers, a solid brass M cage, cylindrical bore and increased C3 radial clearance. It has no seals, lubrication groove or holes, and standard precision.

Dimensions: inner diameter d 110 mm, outer diameter D 180 mm, width B 56 mm; weight 5.51 kg. The spherical outer-ring raceway compensates for alignment errors and shaft deflections. The bearing supports particularly high radial loads and axial forces in both directions. ABF lists applications such as elevators, textile machinery, food-processing equipment and cranes.
