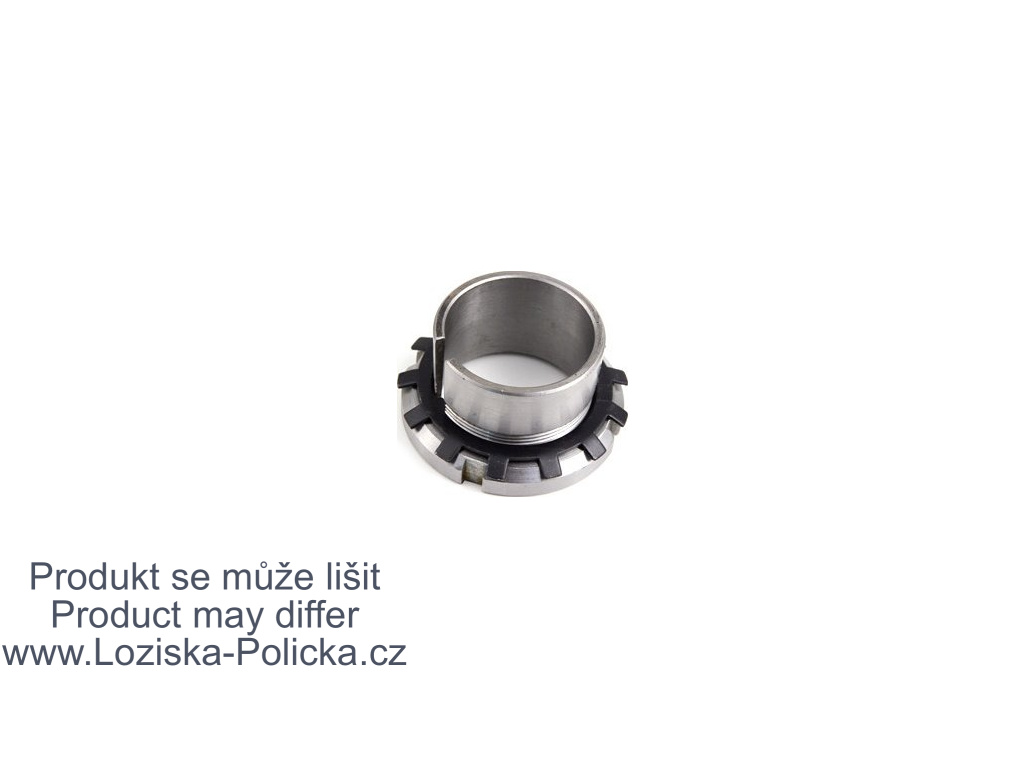

Upínací pouzdro H 316 MTM

d = Tr280x4 mm,D = 330 mm,L = 152 mm,b = 260 mm

D = M170x3 mm,d = 150 mm,L = 140 mm

D = Tr210x4 mm,d = 190 mm,L = 158 mm

d = Tr220x4 mm,D = 292 mm,L = 161 mm,b = 200 mm

d = M170x3 mm,D = 220 mm,L = 154 mm,b = 150 mm

d = Tr280x4 mm,D = 350 mm,L = 195 mm,b = 260 mm

D = Tr280x4 mm,d = 240 mm,L = 202 mm

D= M180x3 mm,d = 150 mm,L = 140 mm

b = 170 mm,D = 240 mm,d = M190x3 mm,L = 141 mm

D = M180x3 mm,d = 160 mm,L = 104 mm

D = M190x3 mm,d = 170 mm,L = 140 mm

D = Tr220x4 mm,d = 190 mm,L = 118 mm
