Lager, Sidan 100
Sortering av produkter
Varumärken
Innerdiameter d (mm)
Ytterdiameter D (mm)
Bredd B (mm)
Lista över produkter
Single-row tapered roller bearing T2DC220/VE679 SKF. Dimensions 220 × 285 × 41 mm, standard precision, VE679 internal or external design modification and weight 6.44 kg. Albeco confirms the designation without additional detail values.

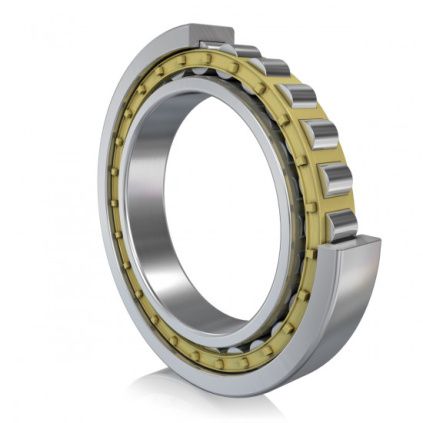

Lager - NU1040-XL-M1 FAG
NU1040-XL-M1 FAG is a single-row cylindrical roller bearing in NU design with a solid brass M1 cage, cylindrical bore, no seals and normal Cn clearance. It is an X-Life bearing.
Dimensions: inner diameter d 200 mm, outer diameter D 310 mm, width B 51 mm; weight 14.6 kg. NU bearings carry radial forces and allow axial displacement in both directions, making them suitable as floating bearings. They are used in gearboxes, agricultural machinery, pumps, compressors and electric motors.
ZARF 55145-TV-A INA
kombinerat nål-/axiellt cylindriskt rullager
55 × 145 × 82 mm
ZARF · TV · A
Injection moulded cage of glass fibre reinforced polyamide 66
INA NKXR 15 XL nålrullager för precisionsmontering med radiell belastning.
Nål-/axialkullager NKX30-XL INA utan tätning, 30 × 42 × 30 mm, vikt 0,141 kg; XL / X-Life.
55x90x18 mm
6011 2RS URB
Enradigt spårkullager med gummitätningar på båda sidor enligt beteckningen 2RS. Håldiameter d = 55 mm, ytterdiameter D = 90 mm, bredd B = 18 mm.
Rubber seals on both sides
Greater radial internal clearance
