    Home / Lagers / Lagerhuizen / Lagereenheid - S 617 KUVAL

    Lagereenheid - S 617 KUVAL

    Niet beoordeeld Beoordelingsdetails
    Lagereenheid - S 617 KUVAL
    €136,04 / st. €112,43 excl. btw
    In stock (2 st.)
    Levering aan:
    15. 7. 2026
    Leveringsopties
    Kwantumkorting
    1 - 4 st.
    €136,04 / st.
    5 - 9 st. = korting 3 %
    €131,96 / st.
    10 - 24 st. = korting 6 %
    €127,88 / st.
    25 - 49 st. = korting 9 %
    €123,80 / st.
    50 en meer st. = korting 12 %
    €119,72 / st.
    Je slaat op €0

    The Bearing Housing S 617 KUVAL is a robust, two-piece cast iron housing designed to securely support bearings in demanding industrial applications. It features a labyrinth seal to protect against contaminants and is suitable for both grease and oil lubrication.

    Gedetailleerde informatie

    Wat je bij ons krijgt
    Wij helpen u bij het kiezen van het type
    Volgens de aanduiding en afmetingen
    Rembours zonder extra kosten
    U betaalt pas bij overname
    Zelfs moeilijk te vinden componenten
    Bijzondere en oudere typen
    Snelle afhandeling van aanvragen
    Wij helpen u een oplossing te vinden

    Verwante producten

    Lagereenheid - S 509 KUVAL
    Lagereenheid - S 509 KUVAL
    In stock at supplier (on request)
    €34,05 excl. btw
    €41,20
    Bearing Housing S 509 KUVAL does not yet have a detailed description. For more information, including dimensions and other specifications, please contact us. Our customer support team is ready to provide you with all the information you need.
    S 509 KUVAL
    Lagereenheid - RASEY 20 JIS INA
    Lagereenheid - RASEY 20 JIS INA
    In stock (1 st.)
    €17,01 excl. btw
    €20,58
    Dimensions of the bearing: 20×47×31.1 mm (inner diameter × outer diameter × width)
    RASEY 20-JIS INA
    RL 95 Benn
    Lagereenheid - RL 95 Benn
    In stock (4 st.)
    €68,12 excl. btw
    €82,43
    Bearing Housing RL 95 Benn does not yet have a detailed description. For more information, including dimensions and other specifications, please contact us. Our customer support team is ready to provide you with all the information you need.
    RL 95 BENN
    FL 210 SNR
    Lagereenheid - FL 210 SNR
    In stock (2 st.)
    €13,60 excl. btw
    €16,45
    Bearing Housing FL 210 SNR does not yet have a detailed description. For more information, including dimensions and other specifications, please contact us. Our customer support team is ready to provide you with all the information you need.
    FL 210 SNR
    RUS 19069 GR3 INA
    Lagereenheid - RUS 19069 GR3 INA
    In stock (1 st.)
    €272,61 excl. btw
    €329,86
    For bearing dimensions, please contact us.
    RUS 19069 GR3 INA
    S 512 KUVAL
    Lagereenheid - S 512 KUVAL
    In stock (5 st.)
    €40,73 excl. btw
    €49,28

    The SKF SNL 512-610 bearing housing is a split pillow block housing designed for robust support and easy maintenance of bearings in various industrial applications.

    S 512 KUVAL
    UCFL 206 ASAHI
    Lagereenheid - UCFL 206 ASAHI
    In stock at supplier (on request)
    €17,01 excl. btw
    €20,58
    Bearing Housing Unit UCFL 206 ASAHI does not yet have a detailed description. For more information, including dimensions and other specifications, please contact us. Our customer support team is ready to provide you with all the information you need.
    UCFL 206 ASAHI
    FL 206 SNR
    Lagereenheid - FL 206 SNR
    In stock (1 st.)
    €13,60 excl. btw
    €16,45

    Bearing FL 206 SNR is a high-quality bearing designed for reliable performance in various industrial applications. Manufactured by SNR, this bearing offers excellent durability and smooth operation. Ideal for use in machinery requiring precise rotational movement, it ensures long service life and reduced maintenance. Trust FL 206 SNR for efficient and stable bearing solutions.

    23892348
    UCFC 210 ASAHI
    Lagereenheid - UCFC 210 ASAHI
    In stock (4 st.)
    €35,96 excl. btw
    €43,51
    Bearing Housing Unit UCFC 210 ASAHI does not yet have a detailed description. For more information, including dimensions and other specifications, please contact us. Our customer support team is ready to provide you with all the information you need.
    UCFC 210 ASAHI
    F 208 NTN
    Lagereenheid - F 208 NTN
    In stock at supplier (on request)
    €63,36 excl. btw
    €76,66
    Bearing Housing F 208 NTN does not yet have a detailed description. For more information, including dimensions and other specifications, please contact us. Our customer support team is ready to provide you with all the information you need.
    F 208 NTN
    UCFC 213 ASAHI
    Lagereenheid - UCFC 213 ASAHI
    In stock (4 st.)
    €71,23 excl. btw
    €86,19

    The ASAHI UCFC 213 is a flange-mounted bearing unit designed for robust performance in various industrial applications. It features a cast iron housing and a stainless steel bearing insert, ensuring durability and reliability.

    UCFC 213 ASAHI
    DV 210 A KOVO CHEB
    Ophanglagerhuis - DV 210 A KOVO CHEB
    In stock (1 st.)
    €30,64 excl. btw
    €37,07
    Bearing Housing Unit DV 210 A KOVO CHEB does not yet have a detailed description. For more information, including dimensions and other specifications, please contact us. Our customer support team is ready to provide you with all the information you need.
    DV 210 A KOVO CHEB
    FL 208 SNR
    Lagereenheid - FL 208 SNR
    In stock (6 st.)
    €13,60 excl. btw
    €16,45

    Bearing FL 208 SNR is a high-quality bearing designed for reliable performance in various mechanical applications. Manufactured by SNR, this bearing ensures durability and smooth operation under demanding conditions. Ideal for use in automotive and industrial equipment, the FL 208 SNR offers excellent precision and load capacity.

    4329852
    Lagereenheid - S 510 KUVAL
    Lagereenheid - S 510 KUVAL
    In stock (5 st.)
    €20,41 excl. btw
    €24,70
    Bearing Housing S 510 KUVAL does not yet have a detailed description. For more information, including dimensions and other specifications, please contact us. Our customer support team is ready to provide you with all the information you need.
    S 510 KUVAL
    M-UEL 208 D1 NTN
    Lagereenheid - M UEL 208 D1 NTN
    In stock (5 st.)
    €35,75 excl. btw
    €43,26
    Dimensions of the bearing: 40×80×23 mm (inner diameter × outer diameter × width)
    M = machined brass cage.
    M-UEL 208 D1 NTN
    RCJTZ50 INA
    Lagereenheid - RCJTZ50 INA
    In stock at supplier (on request)
    €63,90 excl. btw
    €77,32
    Dimensions of the bearing: 50×90×31.5 mm (inner diameter × outer diameter × width)
    439458
    Toon alle gerelateerde producten Vorig product Volgende product

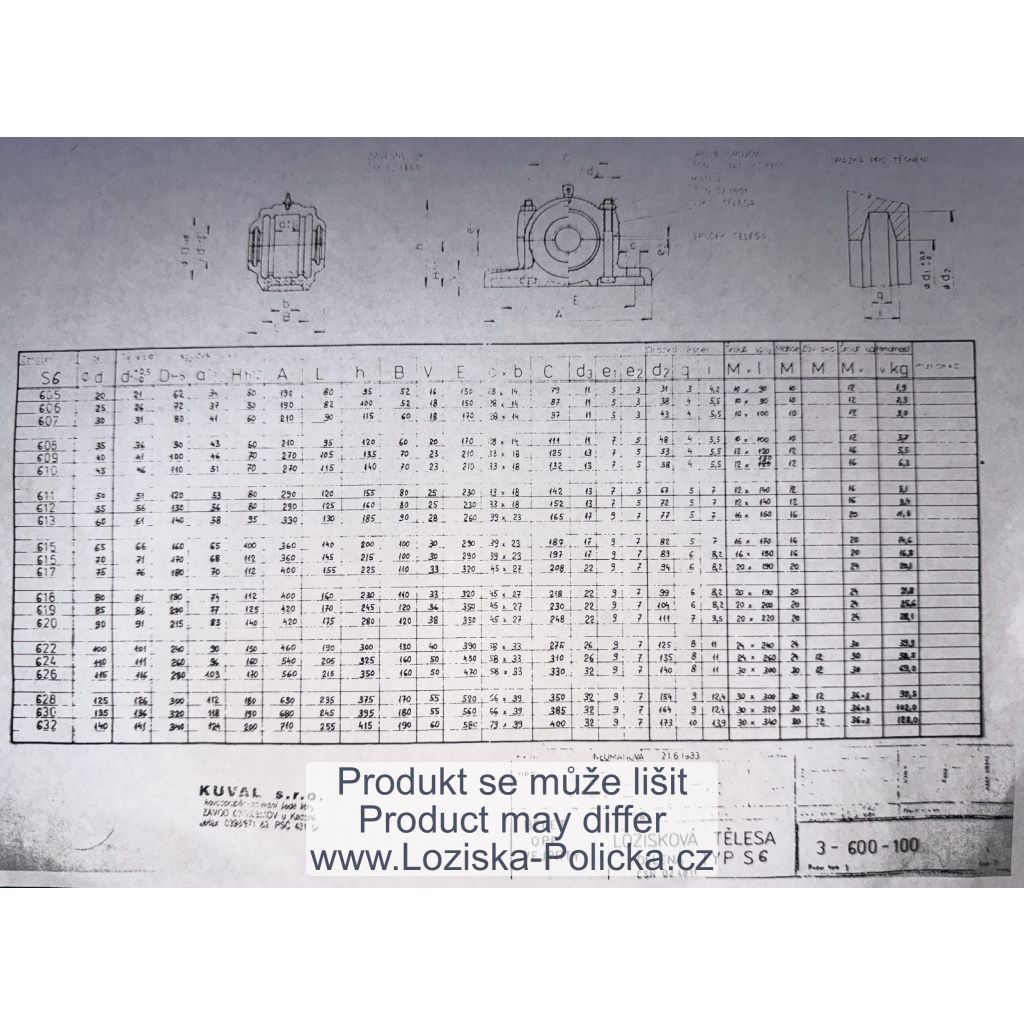

    Gedetailleerde beschrijving van het product

    The Bearing Housing S 617 KUVAL is engineered to provide reliable support and protection for bearings in various industrial settings. Its design ensures durability and efficiency in operations.

    Technical Specifications:

    • Material: Cast iron
    • Housing Type: Pillow block
    • Housing Configuration: Two-piece
    • Mounting Arrangement: Through shaft/Shaft end
    • Number of Bolt Holes for Fasteners: 2
    • Attachment Bolt Diameter: 22.225 mm
    • Center Height (Pillow Block): 114.3 mm
    • Center Distance Between Bolt Holes: 314.325 mm
    • Diameter of Bearing Seat: 180 mm
    • Housing Lubrication Feature/Possibility: Grease/Oil
    • Bearing Housing Seal Type: Labyrinth seal
    • Product Net Weight: 25.1 kg

    This housing is designed to accommodate bearings with a 180 mm bore diameter, making it suitable for various shaft sizes. The labyrinth seal effectively prevents contaminants from entering the bearing area, thereby extending the service life of the bearings. The two-piece construction allows for easy installation and maintenance, reducing downtime in industrial operations.
