Лагерен възел - ASE 14 13 INA

Подробно описание на продукта

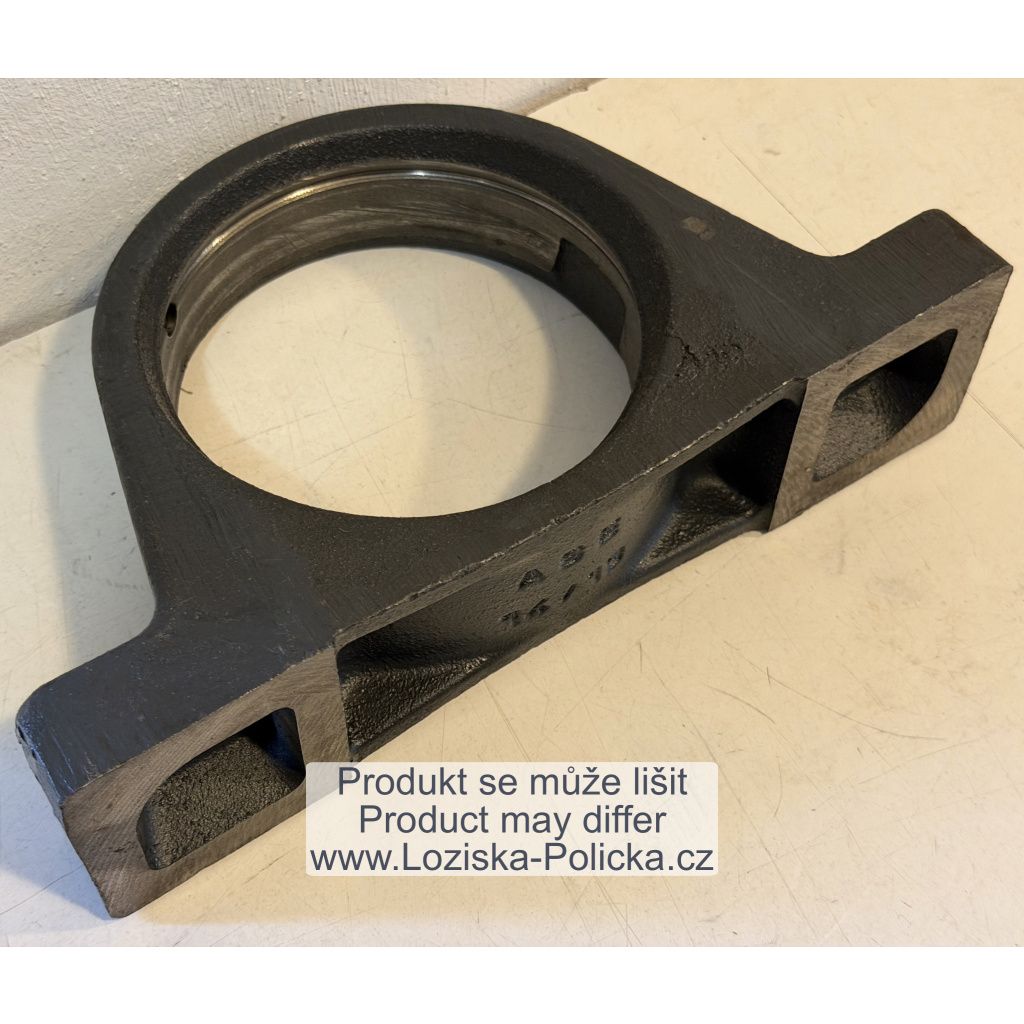

The INA Bearing Housing ASE 14/13 is engineered to house radial insert ball bearings, providing a durable and efficient solution for various mechanical systems.

Key Features:

• Material: Constructed from high-quality grey cast iron, conforming to ASTM A48 class 30 or equivalent standards.

• Design: Features a spherical interface between the bearing and housing, accommodating static misalignment and enhancing operational reliability.

• Lubrication: Equipped with a lubrication nipple (DIN 71412-AR 1/8) for easy re-lubrication, ensuring optimal bearing performance and longevity.

• Finish: Comes with a durable powder coat finish; green is the standard color.

Technical Specifications:

• Shaft Diameter Compatibility: Designed for shafts with diameters ranging from 65 mm to 70 mm.

• Dimensions:

  • Inner Diameter (d): 65 mm
  • Outer Diameter (D): 125 mm
  • Width (B): 72 mm

• Weight: Approximately 3.7 kg.

• Mounting: Secured to the shaft using an eccentric locking collar or set screw, with other locking devices available upon request.

• Clearance: C3 clearance for optimal performance.

• Seals: Supplied with initial grease filling, lithium base type, and equipped with seals to protect against contaminants.

This housing unit is ideal for applications requiring reliable bearing support with the flexibility to accommodate shaft misalignment.
