Festo CPE14-M1BH-5/3GS-QS-6
Worldwide delivery
Best prices
Verified quality
Свързани продукти
Подробно описание на продукта

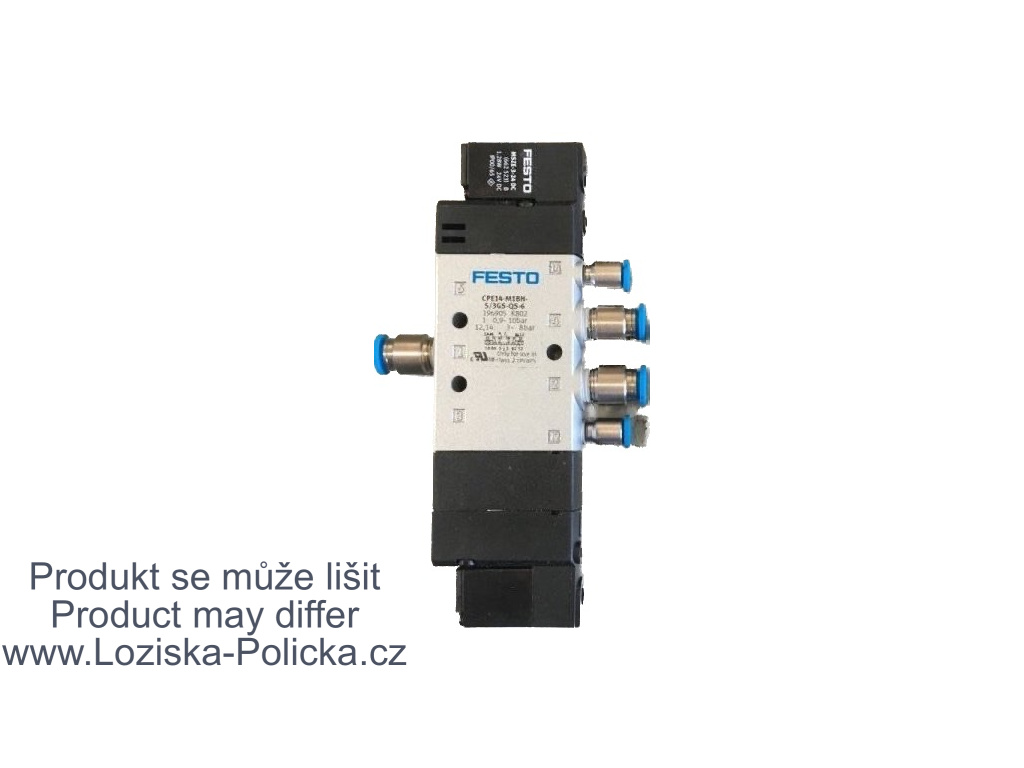

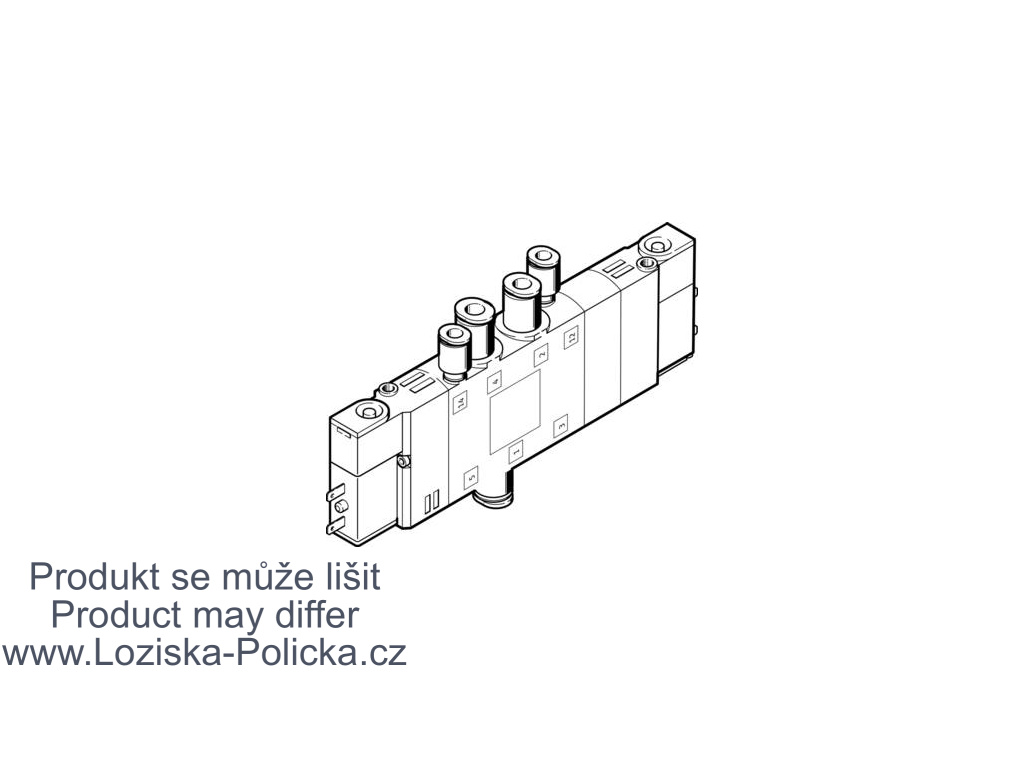

The Festo CPE14-M1BH-5/3GS-QS-6 is a high-performance 5/3-way solenoid valve engineered for precise control in pneumatic applications. Its compact design, with a width of only 14 mm, makes it ideal for space-constrained environments.
Key Features:
- Valve Function: 5/3-way, closed
- Actuation Type: Electrical
- Width: 14 mm
- Standard Nominal Flow Rate: 410 l/min
- Operating Pressure: -0.09 MPa to 1 MPa (-0.9 bar to 10 bar)
- Design Structure: Piston gate valve
- Reset Method: Mechanical spring
- Certification: c UL us - Recognized (OL)
- Degree of Protection: IP65
- Electrical Connection: 2-pin
- Mounting Position: Any
- Manual Override: Detenting via accessory, non-detenting
- Pilot Air Supply Port: External
- Flow Direction: Reversible
- Pilot Pressure: 0.3 MPa to 0.8 MPa (3 bar to 8 bar)
- Switching Time (Off): 42 ms
- Switching Time (On): 20 ms
- Duty Cycle: 100% in combination with holding current reduction
- Operating Medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Temperature Range: -5°C to 50°C
- Materials:
- Seals: NBR
- Housing: Die-cast aluminum
This valve is designed for applications requiring a closed valve function and is suitable for vacuum applications. It features a mechanical spring reset and is certified with a UL Recognized (OL) mark. The valve's IP65 rating ensures protection against dust and water ingress, making it suitable for various industrial environments. The 2-pin electrical connection and external pilot air supply port offer flexibility in integration with existing systems. The valve's reversible flow direction and adjustable pilot pressure range enhance its versatility in different pneumatic setups. With a switching time of 20 ms (on) and 42 ms (off), it provides quick response times for dynamic applications. The 100% duty cycle, when combined with holding current reduction, ensures reliable and continuous operation. Operating within a temperature range of -5°C to 50°C, it is suitable for a wide range of environmental conditions. The use of NBR seals and die-cast aluminum housing ensures durability and longevity in demanding applications.
Бъдете първият, който ще публикува статия към този елемент!
Добавяне на рейтинг
Бъдете първият, който ще публикува статия към този елемент!
Само регистрирани потребители могат да изпращат публикации. Моля, влезте в или регистрирайте се.
Festo: Leading Manufacturer of Bearings and Transmission Technology
Festo is a globally recognized manufacturer specializing in innovative bearings and advanced transmission technology. With decades of experience, Festo has established itself as a key player in the automation industry, offering precision-engineered components essential for efficient and reliable mechanical power transmission.
Company History
Founded in 1925 in Esslingen, Germany, Festo began as a small family business and has grown into a multinational corporation with a strong reputation for quality and technological innovation. Over nearly a century, Festo has continually adapted to evolving industry demands, expanding its product portfolio and global reach.
Product Range
Festo's extensive product lineup includes:
- Bearings: A wide variety of high-performance bearings designed for durability, precision, and smooth operation in industrial applications.
- Transmission Technology Components: Such as shafts, couplings, gears, and fasteners engineered to optimize power transfer and minimize wear.
- Automation Solutions: Including pneumatic and electric drive technology, motion controllers, and sensor systems that complement bearing and transmission products.
Main Focus
Festo’s key focus lies in developing cutting-edge technology that enhances machine productivity and operational efficiency. Their products emphasize reliability, precision, and energy efficiency, supporting customers in achieving optimal performance across various industries.
Application Areas
Festo’s bearings and transmission technology serve a broad range of applications, including:
- Factory automation and robotics
- Automotive and aerospace manufacturing
- Packaging and process industries
- Material handling and logistics systems
- Food and beverage machinery
Company Headquarters
Festo is headquartered in Esslingen am Neckar, Germany, and operates globally through numerous subsidiaries and service centers, delivering expert support and local availability to customers worldwide.
Notable Technologies and Innovations
- Electric and Pneumatic Drives: Highly efficient actuators and motion systems integrating transmission technology.
- Smart Components: Sensors and IoT-enabled products allowing real-time monitoring of bearing and drivetrain performance.
- Modular Systems: Customizable transmission solutions tailored to specific automation tasks.
With its commitment to engineering excellence and innovative design, Festo continues to be a trusted partner in advancing transmission technology and bearing solutions across industries worldwide.
| Производствена компания : | Festo |
|---|
