Адаптерна втулка OH 3160 H

Не е оценен

€502,99 –23 %

€502,99 –23 % €387 / бр. €319,83 без ДДС

In stock (2 бр.)

Доставка до: 29.08.2025 Оферта за доставка

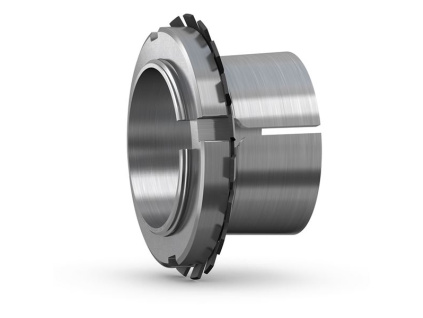

The SKF OH 3160 H adapter sleeve is designed for mounting bearings with a tapered bore onto a cylindrical shaft using the oil injection method. It features a bore diameter of 280 mm, an outer diameter of 380 mm, and a length of 208 mm. This sleeve includes an HM lock nut and an MS locking clip, facilitating easy installation and dismounting.

Подробна информация

Worldwide delivery

Best prices

Verified quality

Покажи всички свързани продукти

Подробно описание на продукта

The SKF OH 3160 H adapter sleeve is engineered to mount bearings with a tapered bore onto a cylindrical shaft using the oil injection method. This design ensures precise positioning and secure locking of the bearing.

Technical Specifications:

Bore Diameter (d₁): 280 mm
Outer Diameter (D₃): 380 mm
Length (L): 208 mm
Thread Designation: Tr 300x4
Taper: 1:12
Lock Nut: HM 3160
Locking Device: MS 3160
Oil Injection Holes: Yes, with one oil supply duct at the threaded end
Weight: Approximately 27.5 kg

Features:

Oil Injection Mounting: Facilitates easy installation and dismounting of bearings using the oil injection method.
Complete Assembly: Supplied with an HM lock nut and an MS locking clip for secure mounting.
Metric Dimensions: Designed to fit standard metric shaft sizes.
High-Quality Material: Manufactured to SKF's stringent quality standards for durability and performance.

This adapter sleeve is ideal for applications requiring precise bearing positioning and secure locking on cylindrical shafts. Its design ensures ease of installation and maintenance, contributing to the overall efficiency and reliability of the machinery.

Втулка за изтегляне AHX 2320 KOYO

In stock (5 бр.)

€18,49 без ДДС

€22,37

D= M110x2 mm,d = 95 mm,L = 90 mm

AHX 2320 KOYO

Втулка за изтегляне AHX 2324/110 SKF

€423,88 без ДДС

€512,89

D = M135x2 mm,d = 110 mm,L = 105 mm

AHX 2324/110 SKF

Адаптерна втулка H 316 ZKL

€6,70 без ДДС

€8,11

d = M80x2 mm,D = 105 mm,L = 59 mm,b = 70 mm

H 316 ZKL

Втулка за изтегляне AOH 24084 SKF

In stock (2 бр.)

€437,69 без ДДС

€529,60

The SKF AOH 24084 withdrawal sleeve is designed to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. It facilitates easy mounting and dismounting, enhancing...

AOH 24084 SKF

Адаптерна втулка H 209 DPI

In stock (5 бр.)

€4,35 без ДДС

€5,26

b = 40 mm,d = M45x1.5 mm,D = 65 mm,L = 33 mm

H 209 DPI

Адаптерна втулка H 210 neu

In stock (16 бр.)

€5,02 без ДДС

€6,07

d = M50x1.5 mm,D = 70 mm,L = 35 mm,b = 45 mm

H 210 NEU

Втулка за изтегляне AHX 3230 G SKF

€437,35 без ДДС

€529,19

D = M160x3 mm,d = 145 mm,L = 114 mm

AHX 3230 G SKF

Втулка за изтегляне AHX 2322/100 SKF

€362,26 без ДДС

€438,34

D = M125x2 mm,d = 100 mm,L = 96 mm

AHX 2322/100 SKF

Адаптерна втулка H 213 ZKL

In stock (45 бр.)

€3,13 без ДДС

€3,79

b = 60 mm,d = M65x2 mm,D = 85 mm,L = 40 mm

H 213 ZKL

Втулка за изтегляне AHX 3224 SKF

In stock (1 бр.)

€134,65 без ДДС

€162,93

D= M75x2 mm,d = 60 mm,L = 61 mm The SKF AHX 3224 G withdrawal sleeve is a tapered sleeve designed for mounting bearings with a tapered bore onto the cylindrical seat of stepped shafts. It features...

AHX 3224 SKF
