Solenoide - Driven Metering Pump gamma/ X ProMinent

Descripción detallada del producto

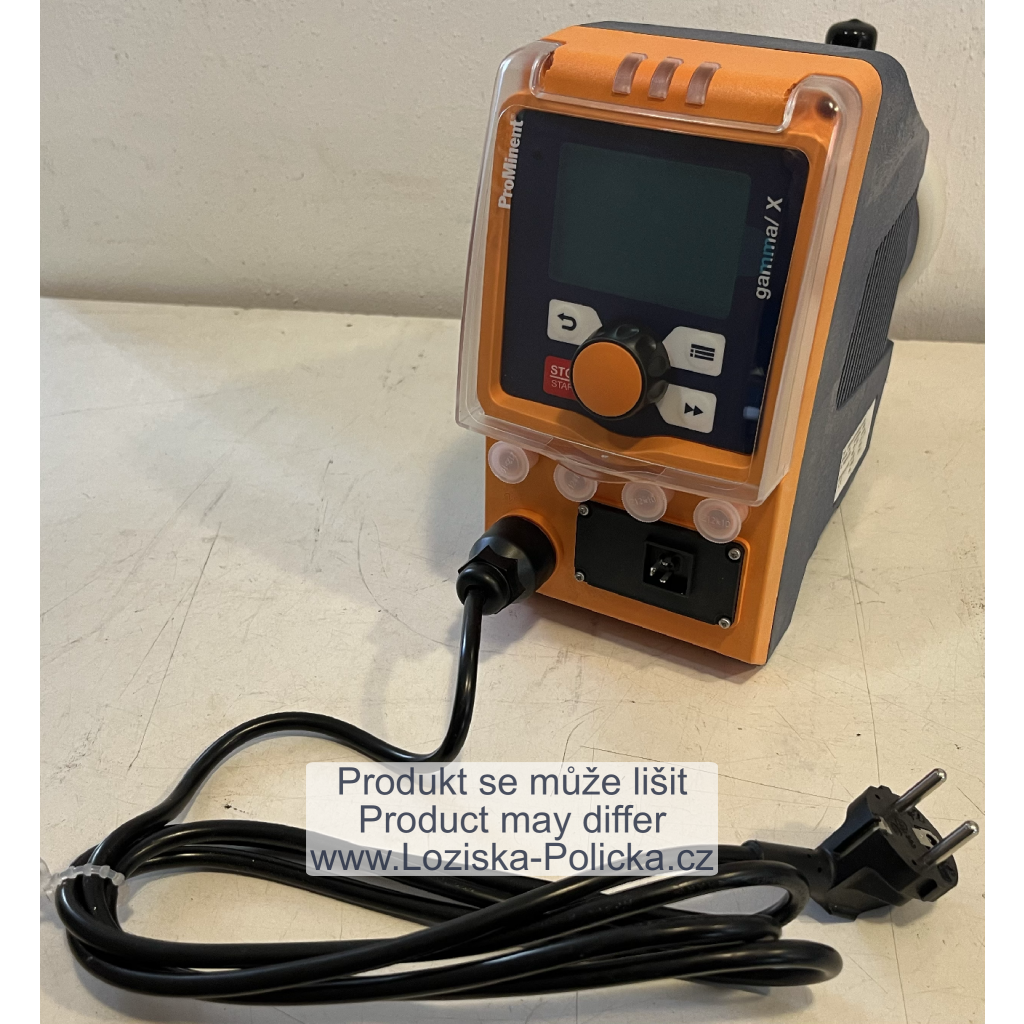

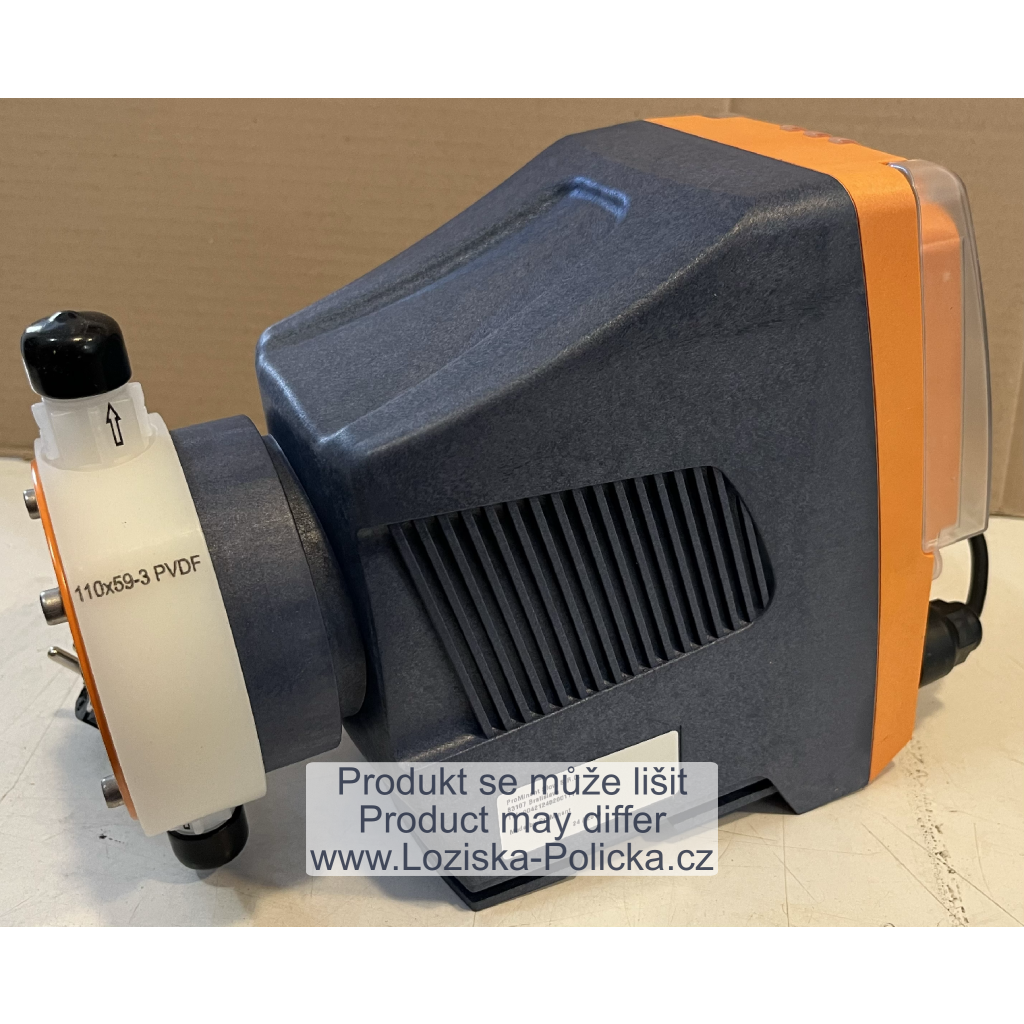

The ProMinent gamma/ X is a state-of-the-art solenoid-driven diaphragm metering pump engineered for the precise dosing of liquid media across various industrial applications. It combines advanced technology with user-friendly features to ensure reliable and efficient operation.

Key Features:

• Capacity and Pressure Range:

  • Flow rate: 1 ml/h to 45 l/h
  • Maximum discharge pressure: 25 bar

• Integrated Pressure Measurement:

  • Monitors back pressure to prevent system overloads
  • Eliminates the need for a separate pressure sensor, enhancing operational safety

• Solenoid Drive:

  • Virtually wear-free, ensuring a long service life
  • Overload-proof and economical

• Continuous Micro-Metering:

  • Suitable for dosing as low as 1 ml/h, thanks to the regulated solenoid drive

• User-Friendly Interface:

  • Simple adjustment of the metering rate directly in l/h
  • Integrated pressure measurement and display for greater safety during commissioning and in the process
  • Control range for metering rate: 1:40,000

• Material Compatibility:

  • Available in various material combinations to suit different chemical compatibilities

Technical Specifications:

• Materials in Contact with the Medium:

  • Dosing head: Polypropylene (PP), Clear Acrylic (NP), Polyvinylidene Fluoride (PVDF), PTFE with carbon (TTT), Stainless Steel (SS)
  • Suction/pressure connector: PVDF, PVDF, PVDF, PTFE with carbon, Stainless Steel
  • Ball seat: PTFE, PTFE, PTFE, Ceramic, Ceramic
  • Seals: FPM (FKM), EPDM, PTFE, PTFE (FDA-compliant), FPM (FKM)
  • Balls: Ceramic, Ceramic, Ceramic, Ceramic, Ceramic

• Performance Data:

  • Capacity range: 2.3 – 45 l/h
  • Maximum back pressure: 25 bar
  • Stroke rate: 200 strokes/min
  • Suction lift: 6.0 m WC (with self-bleeding dosing head)
  • Priming lift: 6.0 m WC

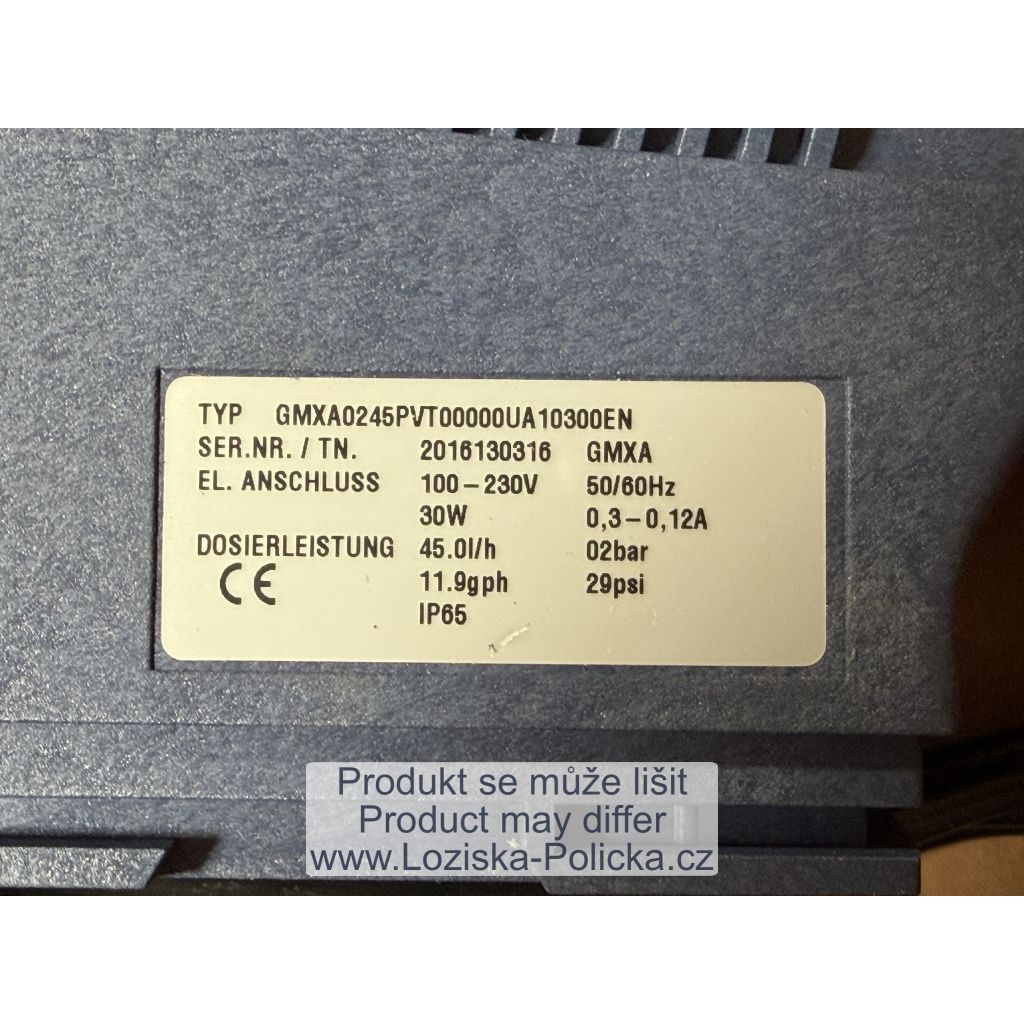

• Electrical Data:

  • Power supply: 100 V - 230 V, 50/60 Hz
  • Degree of protection: IP 66 (NEMA 4X)

• Dimensions:

  • Gamma/ X 1602:
    • ØA: 70 mm
    • B: 71 mm
    • C (with bleed valve): 106 mm
    • D: 32 mm
    • E: 198 mm
  • Gamma/ X 1604:
    • ØA: 70 mm
    • B: 71 mm
    • C (with bleed valve): 106 mm
    • D: 32 mm
    • E: 198 mm

The gamma/ X is designed to meet the demands of various industries, providing precise and reliable dosing solutions. Its advanced features and robust construction make it a valuable asset for applications requiring accurate liquid metering.
