Bearing - ZARN 3570 TV A INA

35 × 70 × 54 mm. Technické provedení a kompatibilitu ověřte podle úplného označení výrobce a požadavků aplikace.

Detailed information

Product detailed description

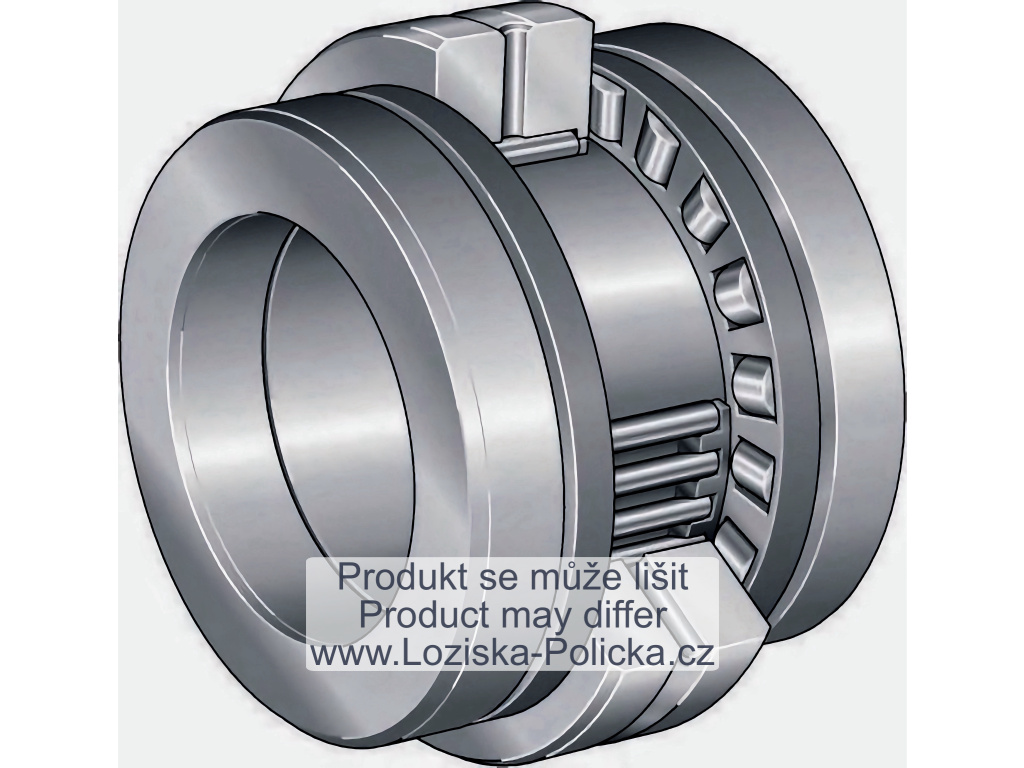

Bearing - ZARN 3570 TV A INA

ZARN 3570 TV A INA combined bearing is a double-direction combined needle and axial cylindrical roller bearing. It has dimensions of 35 × 60 × 54 mm, a polyamide cage and no seal.

Technical specifications

  • Designation: ZARN 3570 TV A INA
  • Manufacturer: INA
  • Type: double-direction combined bearing
  • Dimensions: 35 × 60 × 54 mm
  • Weight: 0.8 kg; 0.852 kg
  • Cage: polyamide
  • Seal: no seal
  • Flange diameter D1: 70 mm
  • Radial dynamic load rating Cr: 26,000 N
  • Radial static load rating C0r: 47,000 N
  • Axial dynamic load rating Ca: 56,000 N
  • Axial static load rating C0a: 148,000 N
  • Limiting speed, grease: 1,700 rpm
  • Limiting speed, oil: 4,800 rpm
  • EAN: 4012802439908

Before ordering

Compare the complete designation and dimensions with the original part or technical documentation.

Additional parameters

Category: Bearings, Bearings 35 × 70 × 54 mm
Weight: 0.8 kg
EAN: 4012802439908
Inner diameter d (mm): 35
Outer diameter D (mm): 70
Width (mm): 54
