Bearing housings

SN 510 SLB – shaft 45 mm; D = 90 mm; L = 205 mm

Split SN 500 series plummer block housing.

d 30 × H 42,9 × L 160 × J 121 × A 44 mm | S1 17 × S2 20 mm

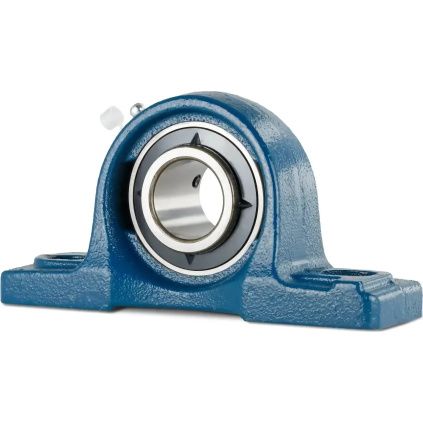

UCP 206 MTM is a cast-iron pillow block unit for a 30 mm shaft with a self-aligning insert bearing and two set screws.

d 35 × H 47,6 × L 167 × J 127 × A 48 mm | N 17 × N1 21 mm
P 207 CRAFT is a cast-iron pillow-block unit with a long base for a 35 mm shaft, UC 207 insert, set-screw locking and M14 mounting bolts.

d 35 × H 47,6 × L 167 × J 127 × A 48 mm | S1 17 × S2 20 mm
UCP 207 MTM is a cast-iron pillow block unit for a 35 mm shaft with a self-aligning UC 207 insert bearing and two set screws for shaft locking.

UCF 206 CN – d = 30 mm; L = 108 mm; J = 83 mm; B = 38.1 mm.

UCFL 206 JIB – d = 30 mm; two-bolt oval flange; 148 × 117 × 80 mm.

The UCFC 216 CX is a flange-mounted bearing unit designed for robust performance in various industrial applications. It features a cast iron housing with a round flange and set screw locking mechanism, ensuring secure and reliable operation.

S 617 KUVAL
The Bearing Housing S 617 KUVAL is a robust, two-piece cast iron housing designed to securely support bearings in demanding industrial applications. It features a labyrinth seal to protect against contaminants and is suitable for both grease and oil lubrication. Dimensions d × D × B: 7 × 19 × 6 mm. Inner diameter d = 7 mm, outer diameter D = 19 mm, width B = 6 mm.

DV 312 A KOVO CHEB
Hanger bearing housing for supporting a shaft in an assembly. Before ordering, verify the designation, dimensions and compatibility with the original part.

UCFC 208 BBC – d = 40 mm; four-bolt round flange; L = 145 mm; J = 120 mm.
