Bearing - 71906/VA9D1 SKF

Not rated Rating details

Brand: SKF

€123,14 / pcs €101,77 excl. VAT

Delivery to:

Delivery options

Quantity discount

1 - 4 pcs

€123,14 / pcs

5 - 9 pcs = discount 3 %

€119,45 / pcs

10 - 24 pcs = discount 6 %

€115,75 / pcs

25 - 49 pcs = discount 9 %

€112,06 / pcs

50 and more pcs = discount 12 %

€108,36 / pcs

You save €0

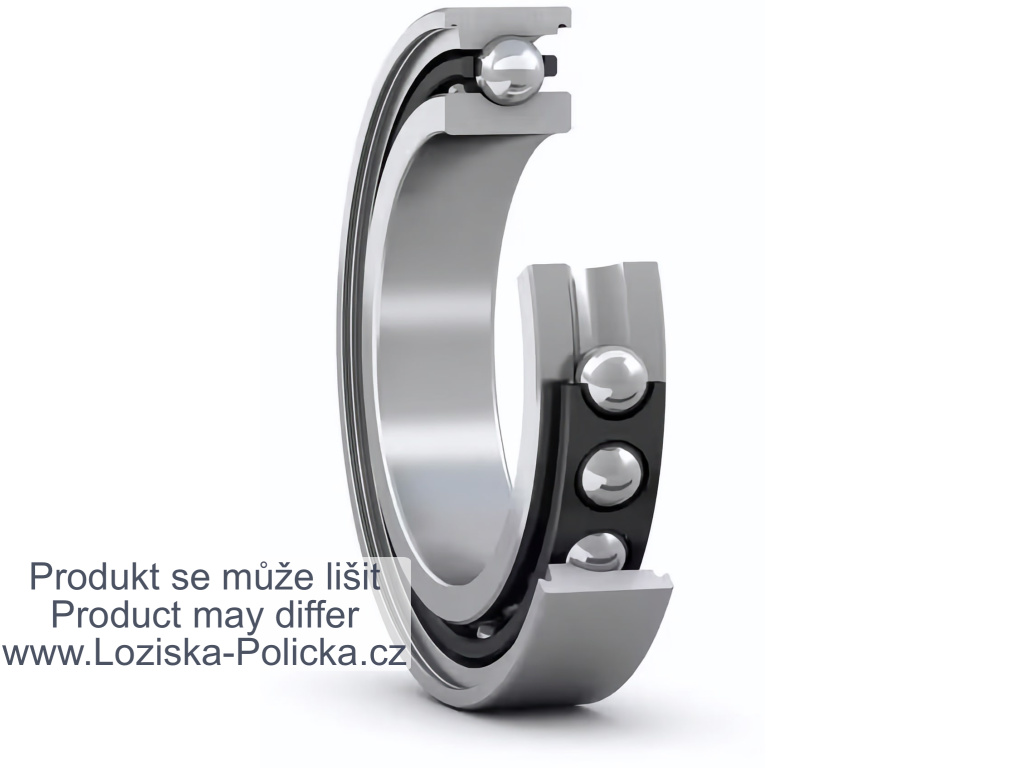

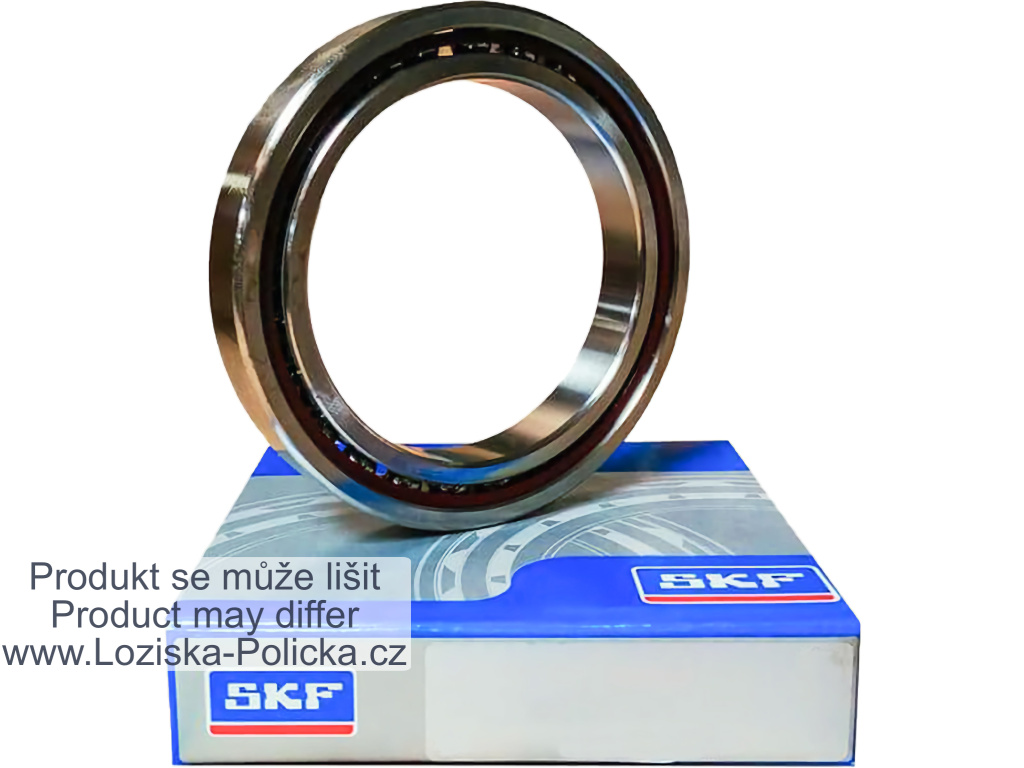

Bearing - 71906/VA9D1 SKF

30 × 47 × 9 mm. super-precision angular contact ball bearing is a single-row, universally matchable design for driven tools. Its 25° contact angle accommodates combined radial and axial loading, with a single bearing carrying axial load in one direction.

Detailed information

Expert advice

We help you choose the right type, size and version

Fast dispatch from stock

Stock items are dispatched without unnecessary waiting

Verified product specifications

Accurate designation, dimensions and technical data

We can source less common types

We help find special, older or hard-to-find versions

Product detailed description

Bearing - 71906/VA9D1 SKF

71906/VA9D1 SKF is a super-precision, single-row angular contact ball bearing measuring 30 × 47 × 9 mm. SKF specifies it for driven tools and universal matching. The design carries radial and axial loads simultaneously, with a single bearing supporting axial load in one direction.

Key features

bore diameter: 30 mm
outside diameter: 47 mm
width: 9 mm
contact angle: 25°
tolerance class: P4
basic dynamic load rating: 6.76 kN; static load rating: 4.3 kN
attainable speed with grease lubrication: 20,000 r/min
open design without seals, bearing steel
manufacturer / brand: SKF

Universal matching

The bearing can be combined back-to-back, face-to-face or in tandem. A paired arrangement provides effective load sharing within a predetermined preload range without shims; the selected arrangement must match the load direction and machine requirements.

Mounting and selection

Install super-precision bearings in a clean environment with the specified lubricant and preload. Verify the complete 71906/VA9D1 designation, orientation, matching arrangement, seat accuracy, speed and operating temperature. The base 71906 designation without the suffix is not sufficient for interchange.

Additional parameters
