Bearing - B7000-C-T-P4S-UL FAG

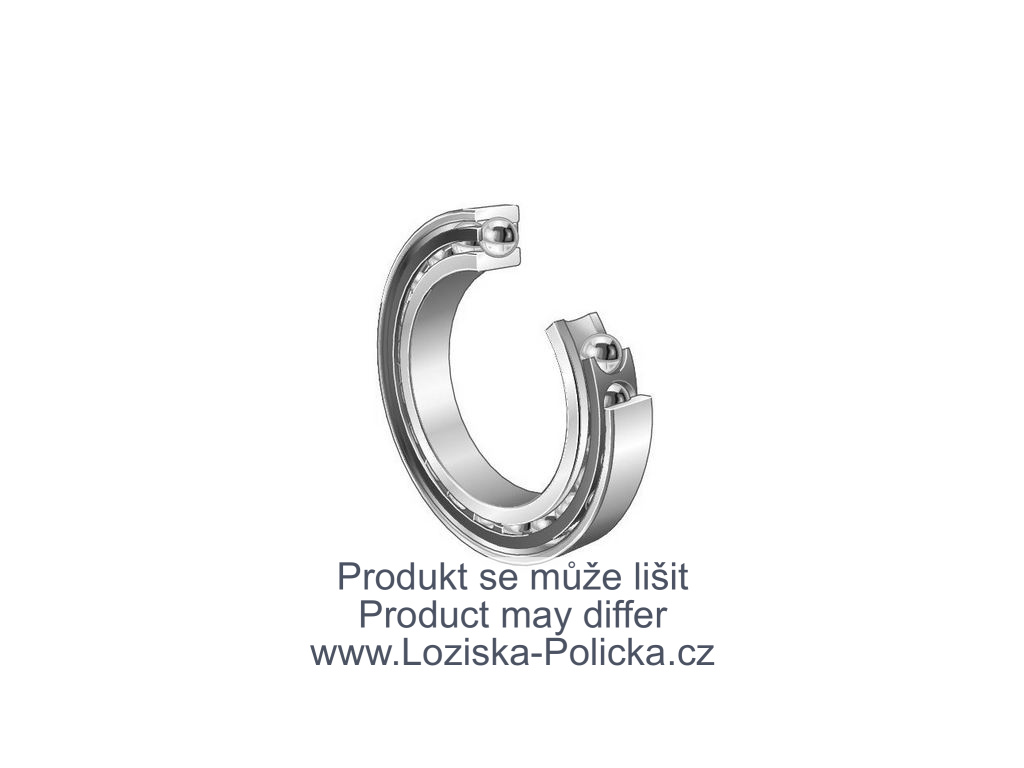

FAG B7000-C-T-P4S-UL precision spindle bearing

FAG B7000-C-T-P4S-UL is a single-row angular contact ball bearing for precision applications and machine-tool main spindles. It has standardized dimensions of 10 × 26 × 8 mm, large steel balls and a design suitable for high rigidity and high rotational speeds.

Technical data

• Type: single-row angular contact ball bearing
• Designation: B7000-C-T-P4S-UL FAG
• Dimensions: 10 × 26 × 8 mm
• Sealing: open design without seals
• Contact angle: 15°
• Cage: TB – hard-fiber/textolite cage, outer-ring guided
• Precision: P4S, higher than P4; boundary dimensions ISO 4, ABEC-7 and running accuracy ISO 2, ABEC-9
• Pairing: G – universal pairing
• Preload: UL – universal design with light preload for mounting in pairs
• Lubrication: standard lubrication
• Rolling elements: large steel balls
• Weight: 0.02 kg from the; 0.025 kg from the
• Dynamic load rating: 4,100 N
• Static load rating: 1,470 N
• Limiting speed with grease: 67,000 rpm
• Limiting speed with oil: 100,000 rpm
• Country of origin: United Kingdom
• EAN: 4012801262385

FAG B70 series spindle bearings are suitable for machine-tool main spindles and other applications requiring high guidance accuracy, rigidity and high rotational speeds. The universal UL design allows bearings to be combined in O, X or tandem arrangements the required direction of axial load.
