ZKL, Page 5
We can arrange delivery of almost any ZKL product, even if it is not currently listed in our catalogue.
Send us the designation, a photo of the nameplate, dimensions or a description of the application, and we will check availability.
ZKL – product identification and supply
The ZKL designation may appear on different technical products and spare parts. To identify the exact item reliably, we therefore work from the complete marking and the available technical data.
The exact item should be selected by its complete designation and technical parameters. Dimensions, design, material and operating conditions are important when matching a replacement.
For an accurate quotation, please provide the full marking, required quantity and any available documentation. We will compare the specification and verify a suitable delivery option.
Product sorting
List of products
Bearing - 6201 RS ZKL
12 × 32 × 10 mm. Single-row deep-groove ball bearing. Rubber seal on one side; compare the complete designation before ordering.
Bearing - 6209 2RS ZKL
45 × 85 × 19 mm. Single-row deep groove ball bearing with contact rubber seals on both sides. It carries radial and limited axial loads in both directions; the seals retain lubricant and protect the rolling contact from contaminants.
Bearing - 22313 M ZKL
65 × 140 × 48 mm. double-row spherical roller bearing with a solid machined brass cage. Its self-aligning design carries high radial loads, axial loads in both directions and accommodates operating misalignment.
Bearing - NJ 205 ZKL
25 × 52 × 15 mm. single-row cylindrical roller bearing with high radial load capacity. The NJ design locates the shaft axially in one direction while allowing axial displacement in the opposite direction.
Bearing - 16003 ZKL
17 × 35 × 8 mm. bearing with clearly stated mounting dimensions. The product name gives no suffix for closure or clearance; compare the complete marking on the original bearing before replacement.
Bearing - 6209 K ZKL
45 × 85 × 19 mm. bearing with verified mounting dimensions; compare the complete K suffix before replacement.
Bearing - 22312 KJB ZKL
60 × 130 × 46 mm. Double-row spherical roller bearing for high radial loads and axial loads in both directions.
Bearing - 6000 RS ZKL
10 × 26 × 8 mm. Single-row deep-groove ball bearing. Rubber seal on one side; compare the complete designation before ordering.

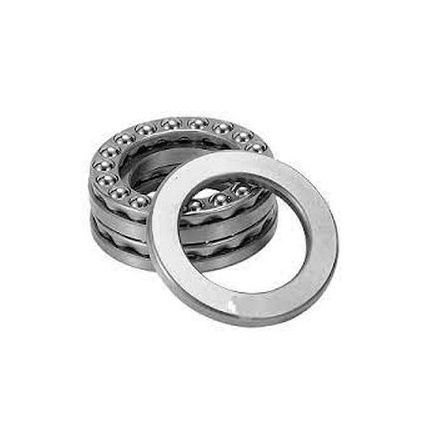

Bearing - 52209 ZKL
Double-direction thrust ball bearing for axial loads in both directions. Overall dimensions 35 × 73 × 37 mm. The separable two-row assembly is intended exclusively for axial forces and cannot carry radial loads.
Bearing - 6305 2Z ZKL
25 × 62 × 17 mm. Single-row deep groove ball bearing with non-contact metal shields on both sides. It carries radial and limited axial loads in both directions; the shields retain lubricant while maintaining low friction.
Bearing - 625 ZKL
5 × 16 × 5 mm. bearing with clearly stated mounting dimensions. The product name gives no suffix for closure or clearance; compare the complete marking on the original bearing before replacement.
Bearing - E 15 ZKL
bearing. For a reliable selection, compare the complete designation and design with the original part.
Bearing - 30306 E ZKL
30 × 72 × 20.75 mm. tapered roller bearing for combined radial and axial loads.
Bearing - 6000 ZR ZKL
10 × 26 × 8 mm. Single-row deep groove ball bearing with a non-contact metal shield on one side. It carries radial and limited axial loads in both directions; the open side provides access to the rolling contact.
Bearing - 6306 Z ZKL
30 × 72 × 19 mm. Single-row deep groove ball bearing with a non-contact metal shield on one side. It carries radial and limited axial loads in both directions; the opposite side remains open.
Bearing - 6006 ZKL
30 × 55 × 13 mm. Open single-row deep groove ball bearing. It primarily carries radial load and also limited axial loads in both directions; the open design provides direct access for lubrication and requires protection from the surrounding arrangement.
Bearing - 6002 2Z C3 ZKL
15 × 32 × 9 mm. bearing for replacement use. Before ordering, compare the complete designation and verify the dimensions, design and fit with the original part. Confirm compatibility against ZKL documentation and the requirements of the specific application.
