Product detailed description

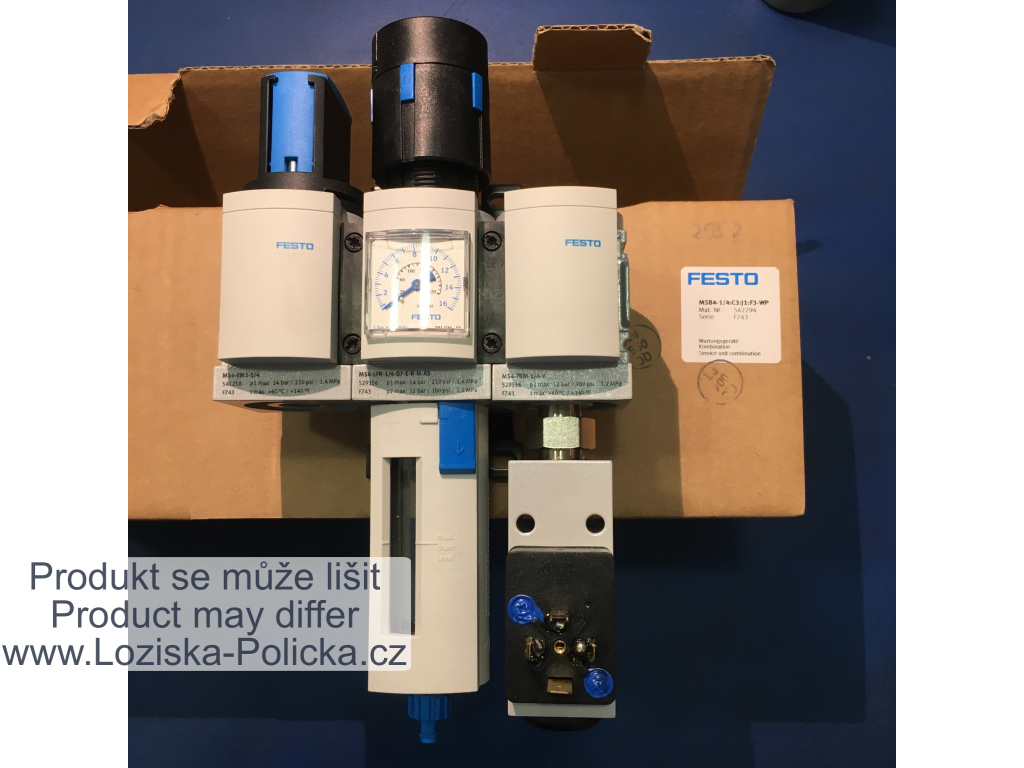

The Festo MSB4-1/4:C3:J1:F3-WP is a high-performance air preparation combination unit engineered to meet the demands of industrial automation applications. This unit combines a filter, regulator, and lubricator (FRL) into a single, space-saving design, providing comprehensive air treatment solutions.

Key Features:

• Integrated FRL Design: Combines filter, regulator, and lubricator functions in one unit for efficient air preparation.
• High Flow Capacity: Standard nominal flow rate of 1,700 liters per minute (l/min) to support high-demand applications.
• Pressure Regulation: Operating pressure range from 0.8 bar to 14 bar, with a pressure regulation range of 0.5 bar to 12 bar, allowing precise control over air pressure.
• Filtration: Equipped with a 40 µm filter to ensure clean air supply, enhancing the performance and longevity of downstream components.
• Condensate Drain: Features a manually rotating condensate drain for easy maintenance and optimal performance.
• Durable Construction: Housing made of die-cast aluminum and bowl material of polycarbonate (PC) for robustness and durability.
• Mounting Position: Designed for vertical mounting with a tolerance of ±5°, providing flexibility in installation.
• Corrosion Resistance: Classified under CRC 2, indicating moderate corrosion resistance suitable for various industrial environments.
• Temperature Range: Operates effectively within a medium temperature range of -10°C to 60°C and ambient temperature range of -10°C to 60°C.
• Pneumatic Connections: Equipped with three G1/4 ports for versatile pneumatic connections.

Technical Specifications:

• Size: 4
• Series: MS
• Actuator Lock: Rotary knob with detent, can be closed with accessories
• Grade of Filtration: 40 µm
• Condensate Drain: Manually rotating
• Design Structure: On/off valve, filter regulator with pressure gauge
• Controller Function: Output pressure constant, with primary pressure compensation, secondary exhausting, and return flow function
• Bowl Guard: Plastic bowl guard
• Pressure Gauge: With pressure gauge
• Operating Pressure: 0.8 bar to 14 bar
• Pressure Regulation Range: 0.5 bar to 12 bar
• Standard Nominal Flow Rate: 1,700 l/min
• Operating Medium: Compressed air as per ISO 8573-1:2010 [7:4:4], inert gas
• Corrosion Resistance Class (CRC): 2 - Moderate corrosion stress
• LABS (PWIS) Conformity: VDMA24364-B1/B2-L
• Storage Temperature: -10°C to 60°C
• Air Quality Class at the Output: Compressed air as per ISO 8573-1:2010 [7:4:4]
• Temperature of Medium: -10°C to 60°C
• Ambient Temperature: -10°C to 60°C
• Product Weight: 1,300 g
• Type of Mounting: With accessories
• Pneumatic Connections: G1/4
• Housing Material: Die-cast aluminum
• Material of Bowl: PC

This unit is ideal for applications requiring precise air preparation, such as controlling pneumatic actuators, valves, and other components sensitive to air quality and pressure fluctuations. Its robust construction and comprehensive features make it a reliable choice for demanding industrial environments.
