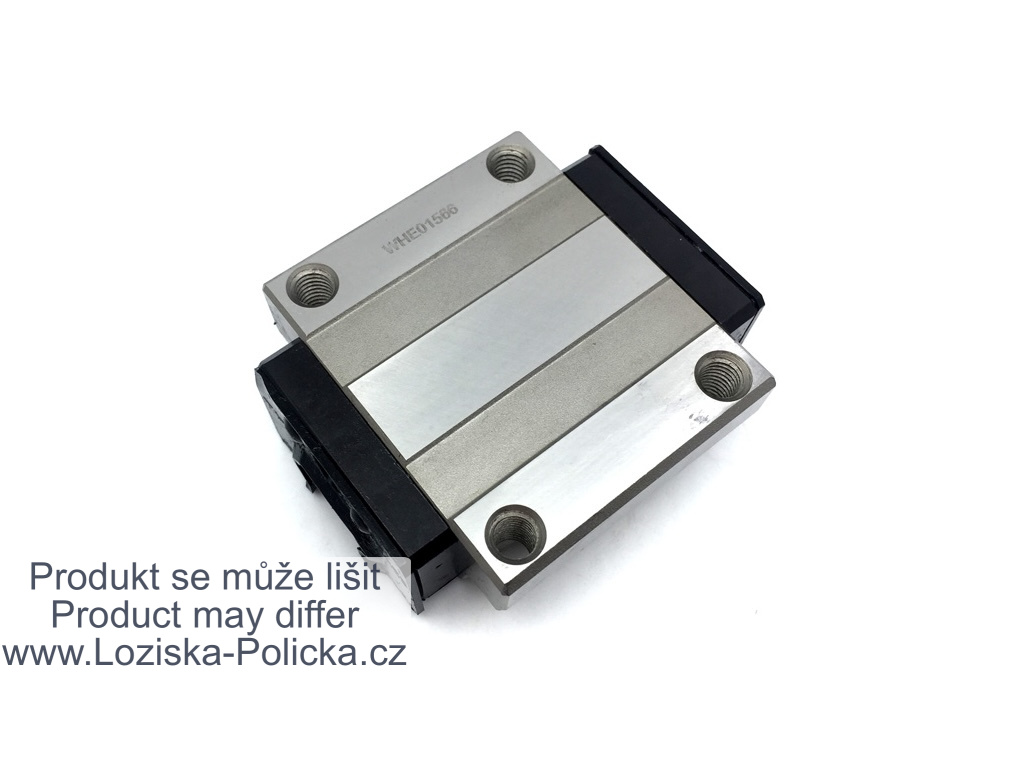

Bearing HSR 25 LR1 DDC1 THK
Worldwide delivery
Best prices
Verified quality
Related products
Product detailed description
The THK HSR 25 LR1 DDC1 is a linear motion guide that offers high rigidity and smooth motion, making it ideal for precision machinery and automation systems.
Key Features:
-
4-Way Equal Load Design: Each row of balls is placed at a 45° contact angle, ensuring uniform load distribution in radial, reverse radial, and lateral directions. This design allows the guide to be used in all orientations.
-
High Rigidity: The arrangement of four rows of balls enables the application of a large preload, enhancing rigidity in all directions while maintaining a low friction coefficient.
-
Self-Adjustment Capability: THK's unique circular-arc grooves (DF set) allow the guide to absorb mounting errors even under preload, achieving highly accurate and smooth straight motion.
-
High Durability: The design prevents differential slip of balls under preload or excessive biased load, resulting in smooth motion, high wear resistance, and long-term maintenance of accuracy.
-
Stainless Steel Option: A special type is available where the LM block, LM rail, and balls are made of stainless steel, offering enhanced corrosion resistance.
Technical Specifications:
-
Rail Size: 25 mm
-
Block Dimensions:
- Height (M): 40 mm
- Width (W): 48 mm
- Length (L): 83.1 mm
- Flange Width (B): 35 mm
- Flange Height (C): 50 mm
- Pitch (S): 60 mm
- Bolt Hole Diameter (F): M6
- Ball Diameter (d1 x d2 x h): 7 x 11 x 9 mm
-
Load Ratings:
- Dynamic Load Rating (C): 35.2 kN
- Static Load Rating (C0): 51.6 kN
-
Lubrication: Grease lubrication with standard grease nipples (M6F)
-
Temperature Range: -15°C to 80°C
-
Seal Type: Standard seals (UU)
For detailed dimensional drawings and additional specifications, please refer to THK's official documentation.
