Bearing housing unit UCFC 210 NTN
Worldwide delivery
Best prices
Verified quality
Related products
Product detailed description

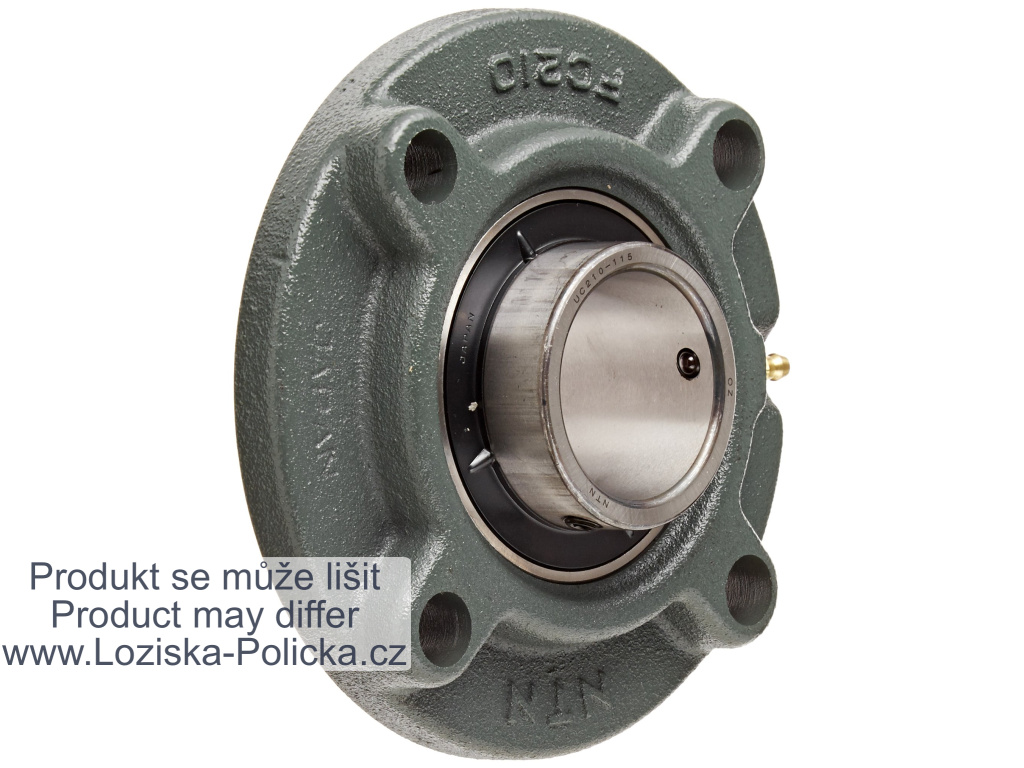

The NTN UCFC 210 is a four-bolt round flange bearing unit that offers robust support and durability for shaft applications.
Key Features:
- Bearing Type: Ball bearing
- Locking Device: Set screw
- Seal Type: Contact seal
- Seal Material: Nitrile rubber
- Housing Material: Cast iron
- Housing Construction: One-piece design
- End Type: Open
- Performance: Light duty
- Dynamic Load Rating: 35,000 N (7,850 lbf)
- Static Load Rating: 23,200 N (5,200 lbf)
- Maximum Rotational Speed: 3,100 RPM
- Operating Temperature Range: -40 to 120°C (-40 to 250°F)
- Lubrication: Non-relubricatable
Dimensional Specifications:
- Shaft Diameter (d): 50.000 mm (1.9685 in)
- Overall Length (L): 165.0 mm (6.5000 in)
- Bolt Circle Diameter (J): 138.0 mm (5.4375 in)
- Bolt Hole Diameter (J1): 97.6 mm (3.8437 in)
- Housing Height (A): 40.0 mm (1.5781 in)
- Housing Height from Mounting Surface (A0): 54.600 mm (2.1562 in)
- Housing Height from Mounting Surface (A1): 28.0 mm (1.0937 in)
- Housing Height from Mounting Surface (A2): 10.0 mm (0.3906 in)
- Housing Height from Mounting Surface (A3): 12.0 mm (0.4687 in)
- Housing Height from Mounting Surface (H3): 110.0 mm (4.3307 in)
- Bolt Hole Diameter (N): 16.0 mm (0.625 in)
- Housing Width (B): 51.600 mm (2.0315 in)
- Bolt Hole Diameter (S): 19 mm (0.748 in)
This bearing unit is ideal for applications requiring a reliable and durable bearing solution with easy installation and maintenance.
