Bearing B7006-C-T-P4S-UL FAG
Worldwide delivery
Best prices
Verified quality
Related products
Product detailed description

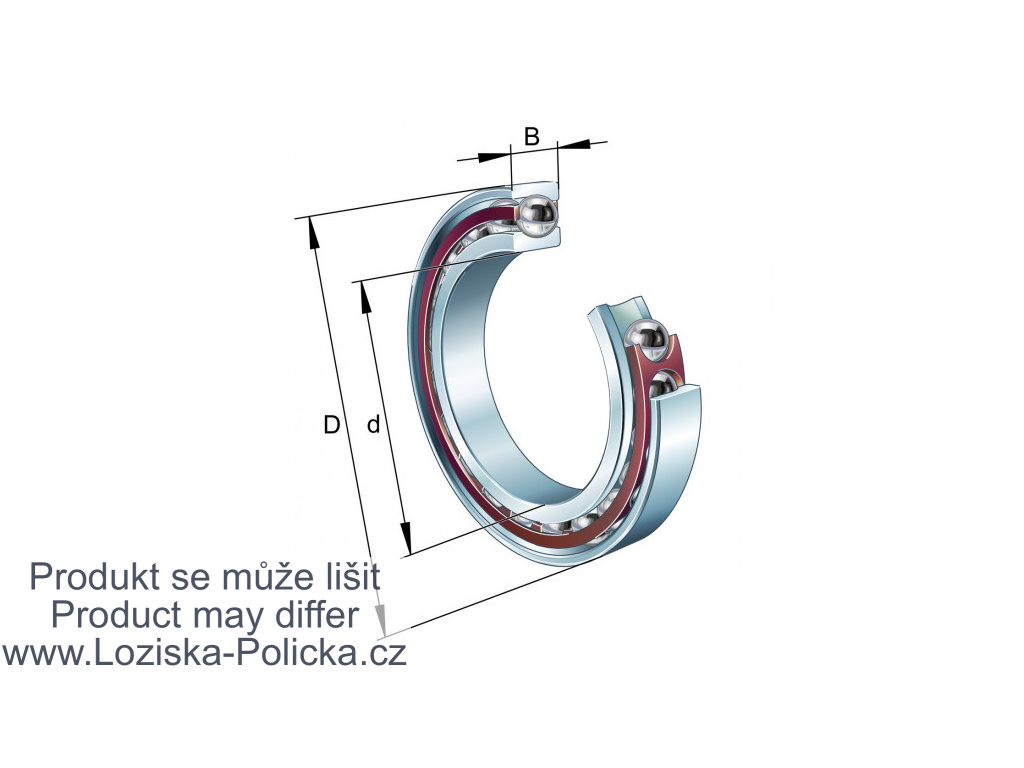

The FAG B7006-C-T-P4S-UL is a single-row angular contact ball bearing specifically engineered for spindle applications. It offers high load-carrying capacity and rigidity, making it ideal for medium-speed operations.
Key Features:
- Contact Angle: 15°
- Design: Single-row angular contact ball bearing
- Cage Material: Textile laminated phenolic resin
- Lubrication: Standard lubrication
- Mounting Dimensions:
- Shaft shoulder diameter (dₐ): 36 mm
- Shoulder diameter outer ring (Dₐ): 49 mm
- Maximum recess radius (rₐₘₐₓ): 0.30 mm
- Minimum diameter injection pitch (Eₜₖₘᵢₙ): 39.40 mm
- Maximum diameter injection pitch (Eₜₖₘₐₓ): 40.60 mm
- Distance between the apexes of the pressure cones (a): 12.30 mm
- Minimum chamfer dimension (rₘᵢₙ): 1 mm
- Temperature Range: -30°C to 100°C
Performance Data:
- Basic Dynamic Load Rating (Cᵣ): 14,400 N
- Basic Static Load Rating (C₀ᵣ): 6,700 N
- Fatigue Load Limit (Cᵤᵣ): 710 N
- Limiting Speed for Grease Lubrication (nₖₘₐₓ): 28,000 rpm
- Limiting Speed for Oil Lubrication (nₖₘₐₓ): 43,000 rpm
This bearing is commonly used in machine tool spindles and other high-precision applications where high rigidity and load-carrying capacity are essential. Its universal design allows for pairing in various arrangements to meet specific operational requirements.
