Bearing NN 3019 KM.P42 FAG
Worldwide delivery
Best prices
Verified quality
Related products
Product detailed description

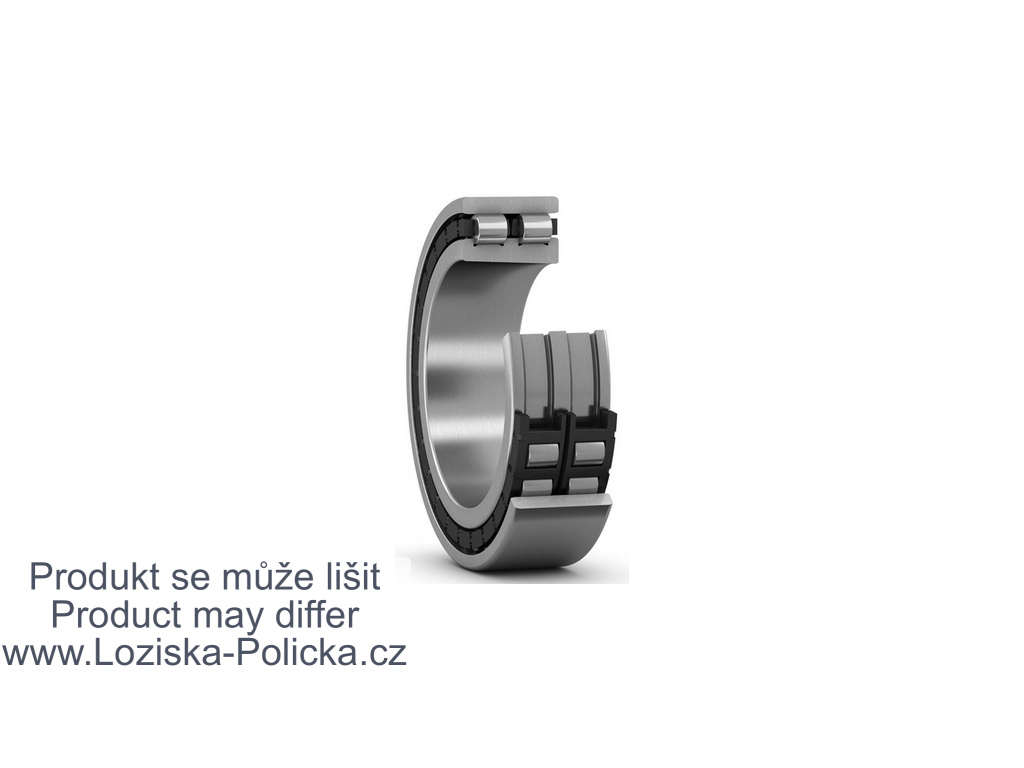

The FAG NN 3019 KM.P42 is a super-precision double-row cylindrical roller bearing engineered to provide exceptional load-carrying capacity, high rigidity, and precise running accuracy. This bearing is ideal for applications requiring high-speed operation and minimal noise and vibration.
Key Features:
-
Design: Double-row cylindrical roller bearing with three flanges on the inner ring and no flanges on the outer ring, allowing for axial displacement in both directions.
-
Bore Type: Tapered bore with a taper ratio of 1:12, facilitating accurate adjustment of clearance or preload during mounting.
-
Cage Material: Non-metallic cage design to reduce friction and wear.
-
Lubrication: Open design without sealing, suitable for applications where external sealing is provided.
Technical Specifications:
-
Dimensions:
- Bore Diameter: 95 mm
- Outside Diameter: 145 mm
- Width: 37 mm
-
Load Ratings:
- Basic Dynamic Load Rating: 142 kN
- Basic Static Load Rating: 232 kN
-
Speed Ratings:
- Attainable Speed for Grease Lubrication: 6,000 rpm
- Attainable Speed for Oil-Air Lubrication: 6,700 rpm
-
Material: High-quality bearing steel for durability and performance.
-
Clearance: Radial internal clearance class C1, suitable for high-precision applications.
-
Tolerance Class: Class SP (Super Precision) for stringent dimensional and running accuracy.
This bearing is commonly used in machine tools, printing machinery, and other high-precision equipment where high radial load capacity and rigidity are essential. Its separable design simplifies mounting and dismounting, particularly when load conditions require both rings to have an interference fit.
