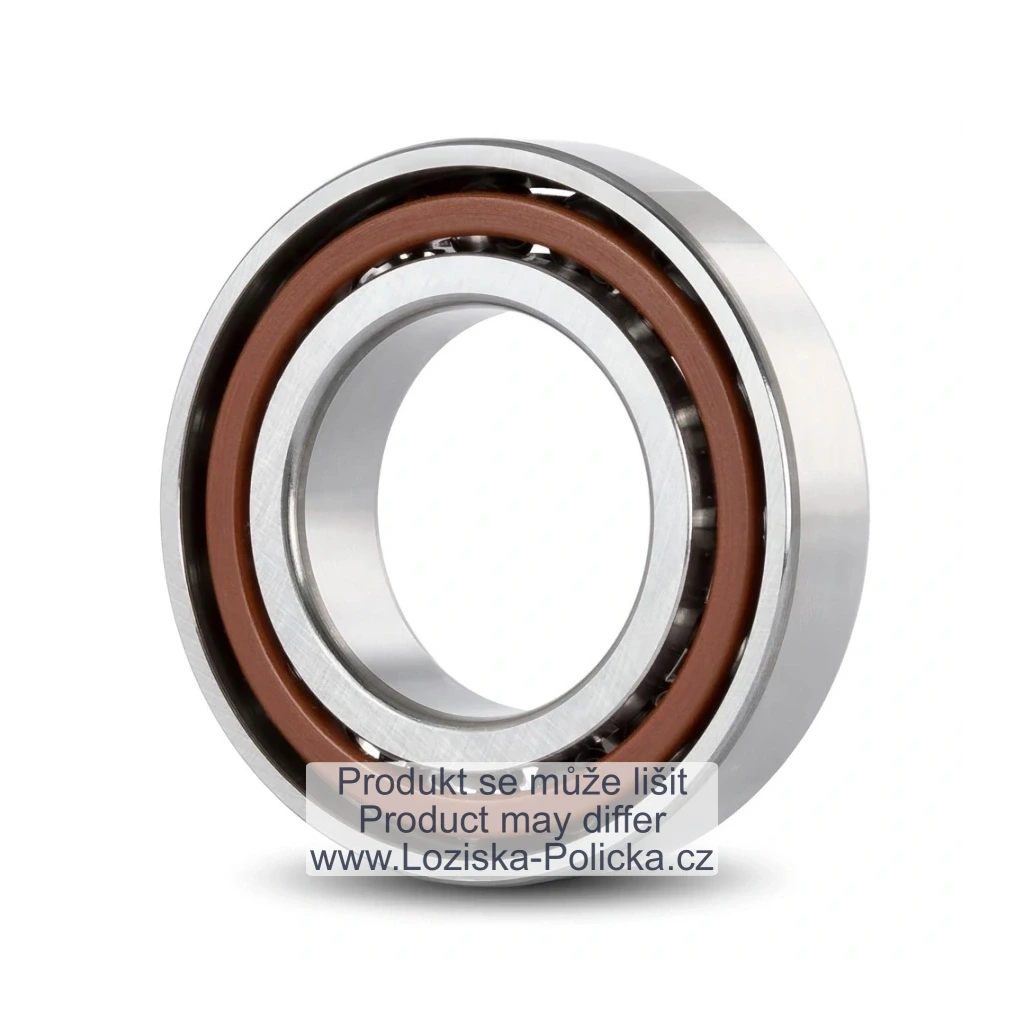

Bearing B7008-C-T-P4S-UL FAG
Worldwide delivery
Best prices
Verified quality
Related products
Product detailed description
The FAG B7008-C-T-P4S-UL is a single-row, angular contact ball bearing specifically engineered for spindle applications. It offers high load-carrying capacity and rigidity, making it ideal for medium-speed operations.
Key Specifications:
- Bore Diameter (d): 40 mm
- Outer Diameter (D): 68 mm
- Width (B): 15 mm
- Contact Angle (α): 15°
- Precision Class: P4S (higher than P4)
- Cage Type: Textile laminated phenolic resin (TB)
- Lubrication: Standard lubrication
- Mounting Arrangement: Universal (UL)
Load Ratings:
- Dynamic Load Rating (Cr): 20,900 N
- Static Load Rating (C0r): 11,200 N
Limiting Speeds:
- Grease Lubrication: 22,000 rpm
- Oil Lubrication: 34,000 rpm
Additional Features:
- Universal Design: Bearings with the same deviation in inner ring bore and outer diameter can be combined for use in different arrangements.
- Applications: Commonly used in main spindles of machine tools.
For more detailed information, please refer to the manufacturer's datasheet.
