Bearing B7202-C-T-P4S-UL FAG
Worldwide delivery
Best prices
Verified quality
Related products
Product detailed description

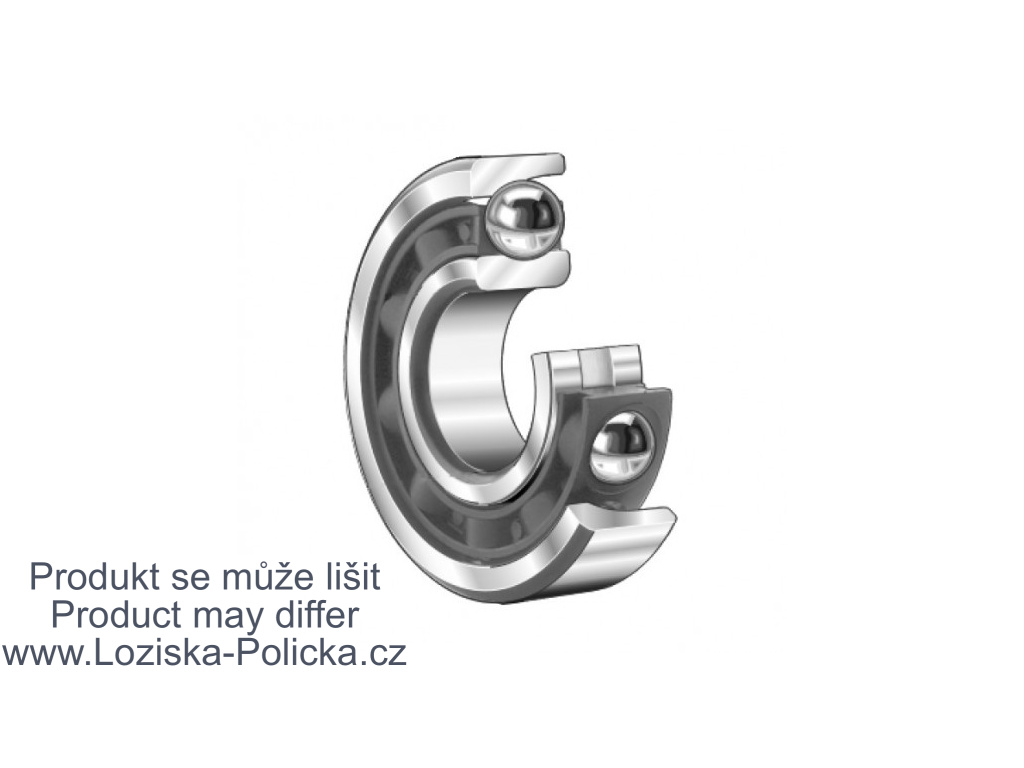

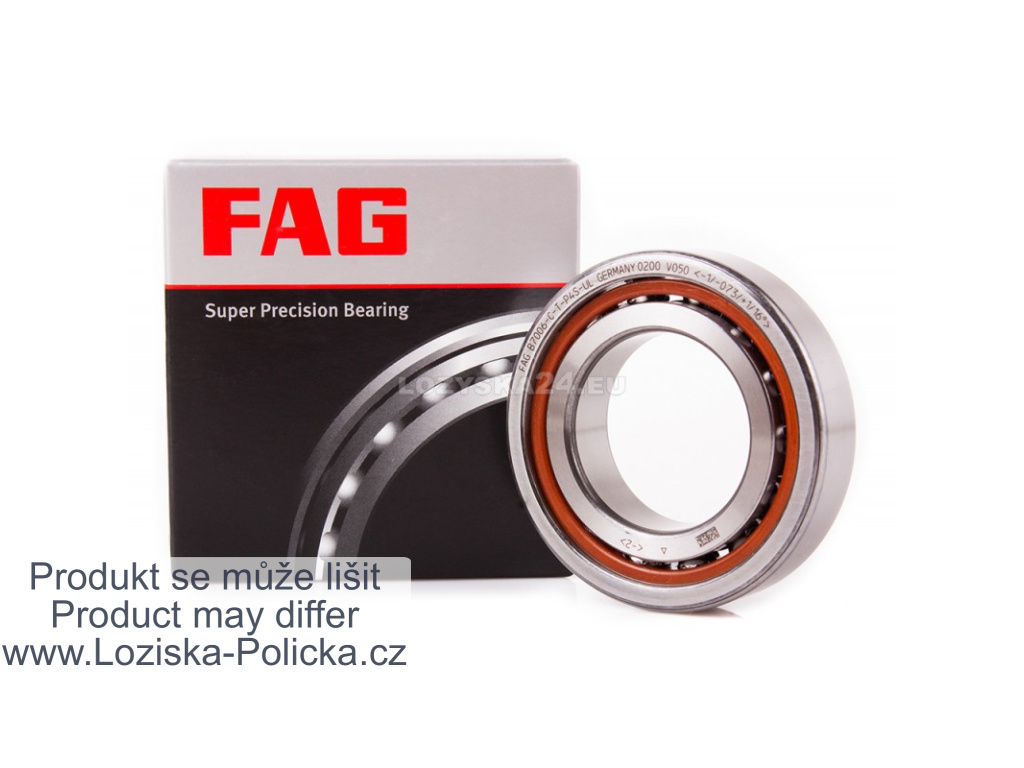

The FAG B7202-C-T-P4S-UL is a single-row angular contact ball bearing specifically engineered for spindle applications requiring high precision and rigidity. This bearing is particularly suitable for medium-speed operations and is commonly used in machine tool spindles.
Key Features:
- Contact Angle: 15°, optimized for axial load handling.
- Cage Material: Textile laminated phenolic resin, suitable for long-term operation up to 100°C.
- Precision Class: P4S, exceeding standard P4 precision, ensuring high running accuracy.
- Design: Universal design (UL) with slight preload in O and X arrangements, suitable for pairing in various configurations.
Technical Specifications:
- Dimensions:
- Inner Diameter (d): 15 mm
- Outer Diameter (D): 35 mm
- Width (B): 11 mm
- Load Ratings:
- Basic Dynamic Load Rating (Cr): 11,600 N
- Basic Static Load Rating (C0r): 5,000 N
- Limiting Speeds:
- Grease Lubrication: 45,000 rpm
- Oil Lubrication: 67,000 rpm
- Axial Rigidity:
- Light: 22.1 N/µm
- Medium: 39.3 N/µm
- Heavy: 57 N/µm
- Fatigue Load Limit (Cur): 540 N
- Temperature Range: Suitable for operation between -30°C and 100°C.
This bearing is designed for universal applications, allowing for pairing in various configurations to support axial loads in one or both directions, as well as moments. Its high precision and load capacity make it ideal for demanding spindle applications.
Be the first who will post an article to this item!
Add a rating
FAG Bearings - Reliability and Performance First
FAG is one of the world’s leading bearing manufacturers, known for its long history, innovation, and technological advancements. The company specializes in producing high-quality bearings for a wide range of industries, including automotive, energy, and heavy machinery. FAG bearings are designed to meet demanding performance and durability requirements, even in the toughest working conditions.
Why Choose FAG Bearings?
- Exceptional Quality - FAG bearings are known for their precise manufacturing and long lifespan.
- Technological Innovations - The company continuously develops new technologies to enhance performance and efficiency.
- High Reliability - FAG bearings are tested in demanding conditions and always deliver consistent performance.
- Wide Range of Applications - Whether you need bearings for automobiles, energy, or heavy industry, we have the right solution for you.
On our e-shop Ložiska-Polička.cz, we offer a wide selection of FAG bearings. If you have specific requirements or need expert advice when selecting bearings, don’t hesitate to contact us. We are here to help and provide bearings tailored to your needs.
